Ukuhlola i-IC 7400: Ukucaciswa, ukucushwa kwe-PIN, kanye nezicelo ezisebenzayo
2024-09-09 17636

I-IC 7400 iyingxenye yesisekelo e-Digital Electronics, eyaziwa ngokushintshana kwayo kanye nokusebenza kahle ekusingatheni imisebenzi ehlukahlukene ye-Logic.Njengengxenye yochungechunge lwama-7400, le yi-IC ifaka amasango amane ama-2-okufakiwe ama-NAnd, okwenza kube yibhulokhi yokwakha ephelele ezinhlelweni ezilula nezinzima.Ukusuka kwimibuthano yengqondo eyisisekelo kuya ezingxenyeni ezithuthukile ezifana ne-Alus ne-Bus Transceivers, i-IC 7400 yakhelwe ukusekela uhla oluhlukahlukene lwezicelo.Ukuzivumelanisa nezimo kwayo, kuhlanganiswe kalula ukuhlanganiswa, kwenza kube yithuluzi elikhulu konjiniyela kanye nama-hobbyists ngokufanayo.Noma ngabe kusetshenziswe kuzilungiselelo zemfundo noma ukwakheka okuhle, i-IC 7400 inikezela ngesixazululo esisebenzayo, esithembekile semisebenzi ye-real-time logic.

Namabhuku

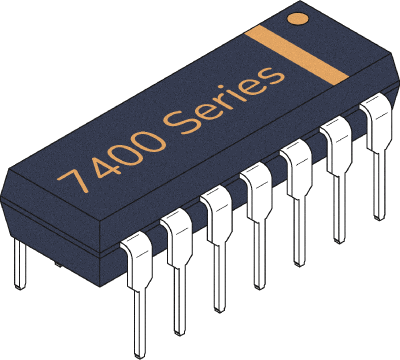

Umdwebo 1: IC 7400

Yini i-IC 7400?

I-IC 7400 iyingxenye ehlukahlukene yedijithali esetshenziswa ezinhlosweni eziningi ze-elekthronikhi.Ukuzivumelanisa nezimo zayo kwenza kube wusizo kumadivayisi asuka kwimibuthako yokuqonda eyisisekelo ezingxenyeni eziyinkimbinkimbi ezifana nama-arithmetic logic Units (alos) nebhasi.Njengengxenye yochungechunge lwe-7400, le ec yakhelwe ukusebenza njengebhulokhi yokwakha imisebenzi yedijithali.Ixhasa imisebenzi efana namasango ayisisekelo anengqondo (futhi, noma, noma i-NAND, noma), ukugcinwa kwedatha namamojula wememori (ye-RAM), kanye nokuhumusha amayunithi wemisebenzi njengokuguqula kanambambili okufana ne-decimal.I-IC 7400 ibekelwe ikakhulukazi amasango ayo amane afudumele ama-NAnd ama-NAnd, asetshenziswa kuyo yomibili imiklamo ye-logic ehlanganisiwe futhi elandelanayo.Isango ngalinye linezikhonkwane ezimbili zokufaka kanye ne-PIN eyodwa yokukhipha, ngenkathi izikhonkwane ezimbili ezisele zihlinzeka ngamandla (VCC) nangomhlabathi (GND).Lokhu kuxhumana kulungele ukusebenza okuzinzile nokusebenza okuthembekile.

IC 7400 PIN CUMINCURATION

Ukuqonda ukucushwa kwe-PIN ye-IC 7400 kulungele ukufeza indlela yokuziphatha efundela oyifunayo.I-PIN ngayinye inendima ethile ethonya umsebenzi we-IC wonke ohlelweni.

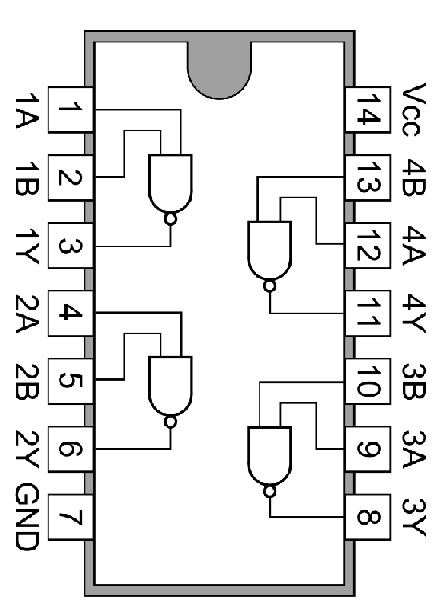

Umdwebo 2: IC 7400 PIN PIN

• Pin 1 (Okufakwayo kwesango lokuqala) - okukodwa kokufakwa okubili kwesango lokuqala leNand.Isiginali exhunywe lapha kufanele isebenze nge-PIN 2 ukuthola isimo sokuphuma se-Pin 3.

• PIN 2 (B-Okokufaka kwesango lokuqala) - okokufaka kwesibili kwesango lokuqala leNand.Amabili ngababili nge-PIN 1, futhi lapho bobabili okokufaka kuphezulu, okukhishwayo (iPIN 3) kuzoba okuphansi, njengokuthi nge-NAMP Gate Logic.

• Phina 3 (Y-Output yesango lokuqala) - Ukukhishwa kwesango lokuqala leNand, ukuhlinzeka ngomphumela we-inverted of the nokusebenza phakathi kwezikhonkwane 1 no-2.

• PIN 4 (Okufakwayo kwesango lesibili) - okufanayo nePin 1 kodwa ngesango lesibili leNand, le phini ithola okokufaka emiklamo eyinkimbinkimbi.

• PIN 5 (B-Okokufaka kwesango lesibili) - ngababili ngePin 4 ukulawula okukhipha kuPin 6.

• PIN 6 (Y-Output yesango lesibili) - Ukukhishwa kwesibili kwesango le-NAT NAT, esetshenziswa ekwakheni amasekethe ama-logic abumbana noma alawule izigaba zakamuva ekwakhiweni.

• PIN 7 .Isisekelo esingalungile singaphumela ekuziphatheni okungalungile noma ukwehluleka okuphelele kwe-IC.

• PIN 8 (Y-Output yesango lesithathu) - Ukukhishwa kwesango lesithathu leNand, kubhekwe ngesikhathi sokudilizwa ukuze kuqinisekiswe ukusebenza okulungile.

• PIN 9 (B-Okokufaka kwesango lesithathu) - Okokufaka kwesango lesithathu, kubhangqwe nge-PIN 10.

• PIN 10 (Okufakwayo kwesango lesithathu) - Isebenza ngePin 9 ukukhiqiza okukhipha ku-PIN 8.

• Phina 11 (Y-Output yesango lesine) - Umphumela weSango lokugcina, osetshenziselwa ukushayela imisebenzi yokugcina ye-Final-Stage.

• Phina 12 (B-Okokufaka kwesango lesine) - Okokufaka kwesango lokugcina leNand, kubhangqwe ngePin 13.

• Pin 13 (Okufakwayo kwesango lesine) - Ukufaka lokho, ngokubambisana nePin 12, kunquma isimo sokukhipha ePin 11.

• PIN 14 (Amandla kagesi atholakalayo) - ahlinzeke amandla we-IC.Onjiniyela baqinisekisa ukuthi lokhu kufakwa kwe-5V kuhlala kuzinzile ngokusebenzisa ama-capacitor asoma

Ukucacisa

I-IC 7400 inokucaciswa okwenze kube yisinqumo esithembekile semiklamo eminingi yesifunda yedijithali, amandla okulinganisa, isivinini, kanye nokuhambisana nemindeni eminingi enengqondo.

• Ukusebenza kwamandla kagesi: 5V

Onjiniyela basebenzisa ama-voltage arterators ukugcina lokhu kufakwa kuqinile, ukuvimbela amaphutha anengqondo okubangelwa ukuguquguquka kwamandla kagesi.

• ukubambezeleka kokusakazwa: 10 ns

Isikhathi esithatha isiginali ukuhamba kusuka kokufaka kokukhipha.Ngenkathi wanele ukutholakala okuningi, i-Engineers Akhawunti yalokhu kubambezeleka okusheshayo, kusetshenziswa ama-Oscilloscopes ukuqinisekisa ukuthi sonke isikhathi singaphakathi kwemingcele eyamukelekayo.

• Ubuningi bokuguqula imvamisa: 25 mhz

Lokhu kusetha umkhawulo wejubane lokuthi amasango asheshe angashintsha ngokushesha kangakanani phakathi kwezifundazwe.Onjiniyela kumele baqinisekise ukuthi ukuklanywa kwabo kusebenza ngaphansi kwalemvamisa ukugwema amaphutha emibuthanweni eshintsha ngokushesha.

• Ukusetshenziswa kwamandla ngesango ngakunye: kufika ku-10 mw

Ukusetshenziswa kwamandla okuphansi kuvumela i-ICS amaningi ukuthi isetshenziswe ngaphandle kokulayisha ngokweqile ukunikezwa kwamandla.Ezinhlelweni ezinkulu, onjiniyela benza isabelomali samandla ngokucophelela ukuze kuqinisekiswe ukusebenza kahle.

• Ukwakheka: Amasango ama-NAnd ama-NAnd angu-2 azimele

I-modular design ye-IC ivumela onjiniyela ukwakha izinhlelo eziyinkimbinkimbi ze-logic ngezakhi ezimbalwa eziyisisekelo.

• Ukukhishwa kokukhishwa: I-TTL, NMOS, CMOS

Ukuhambisana nemindeni ehlukahlukene enengqondo kuqinisekisa ukuhlanganiswa okubushelelezi ezinhlakeni zobuchwepheshe ezixubile.Onjiniyela bavame ukusebenzisa abamelana nama-voltages afakwe emthethweni phakathi kwemindeni enengqondo.

• Ukusebenza kwamandla kagesi

Ngenkathi i-IC imvamisa isebenza ku-5V, ingaphatha ama-voltages ahlukene, ukuvumela ukuthi ivumelane nezimo ezahlukahlukene zohlelo.

• Izimo zokusebenza ezisebenzayo

I-IC isebenza ngokuthembekile ezindaweni ezahlukene.Emazingeni okushisa abi ngokweqile, onjiniyela basebenzisa amasinki okushisa noma amasistimu wokupholisa ukuze alondoloze ukusebenza.

7400 umndeni

Uchungechunge lwe-7400 lubandakanya uhla lwama-digital logic ICS, ngalinye lisebenza izindima ezithile ekwakhiweni kwesizubuli.Ngezansi kune-ICS ejwayelekile kanye nezinhlelo zazo ezisebenzayo:

IC 7400 (Isango le-Quad 2-Innand Land)

Isetshenziselwa imisebenzi eyisisekelo ye-logic, i-Signal Inversion, kanye nokulandelana kokunegayelwa, okungu-7400 kuyisisekelo emiklamo elula futhi eyinkimbinkimbi.

IC 7402 (Ukufakwa okungu-Quad 2 noma isango)

Onjiniyela basebenzisa lokhu ngemibuthano edinga okuzenzakalelayo okuzenzakalelayo ngaphandle kokuthi okokufaka kusebenze.Ilungele ukwakheka okubucayi kwamandla.

IC 7404 (i-hex inverter)

Ingena amazinga anengqondo, alungele ukuvumelanisa kanye nokulungiswa kwesikhathi.

IC 7400 NAND CAGE Circuit Design

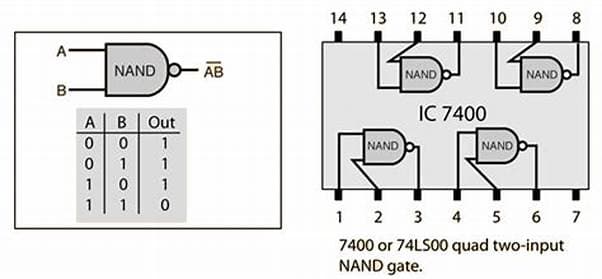

Umdwebo 3: IC 7400 umjikelezo wesifunda nge-nand logic

I-IC 7400's Independent 2-Internanded Indernates I-Indent Gates inikezela ukuguquguquka, okuvumela noma yisiphi isango eliyisisekelo elinengqondo ukuthi lakhiwe.Lokhu kwenza i-IC ihambele ithuluzi lokuklanywa kwesifunda semfundo nokuqeqeshiwe.Onjiniyela bavame ukuyisebenzisa ukwakha imibuthano eyinkimbinkimbi, efana namaflip-flops noma ama-pulseter, ukwenza lula ukwakheka nezigaba zokuhlola.

Ngesikhathi somhlangano, onjiniyela baqinisekisa ubuqotho besiginali obufanele ukugwema amaphutha.Ama-Oscilloscopes noma abahlaziyi be-logic basiza ukuqinisekisa ukunemba kokushintshwa kwesiginali, ikakhulukazi kuhlelo lokusebenza lwejubane eliphezulu.Ezindaweni ezibucayi zokushisa, onjiniyela basebenzisa ukuphathwa kwe-thermal ukuqinisekisa ukuthi i-IC isebenza ngokuthembekile ngaphandle kokucekelwa phansi kwesiginali.

Izinzuzo nobubi

Izinzuzo	Okubi
Kuqiza kahle: Okungabizi kubo bobabili ochwepheshe kanye ne-hobbyists	Ubuqhwaga Ukusetshenziswa: Kuphezulu kunezinketho ezintsha ze-CMOS
Okuhlukahlukene: Iwusizo kumisebenzi elula yedijithali elula futhi eyinkimbinkimbi	Isivinini Ukulinganiselwa: Ama-Maxes aphuma ku-25 MHz
-Ncwaba Ukusebenzisa: Ukuhlelwa kwe-PIN enembile kwenza lula ama-prototyping	-Ngaphansi Amasango: Abane kuphela nge-IC, edinga izingxenye eziningi zemiklamo eyinkimbinkimbi
-Ndanzelinya Kuyatholakala: Kulula ukutholwa kusuka kubahlinzeki abaningi	-Semuva nesikhathi Ubuchwepheshe: Ilungele ukusetshenziswa kwezicelo ezinqenqemeni
Unokwethenjelwa: Melana nomsindo kagesi futhi ugcine ukusebenza okuzinzile

Izinja

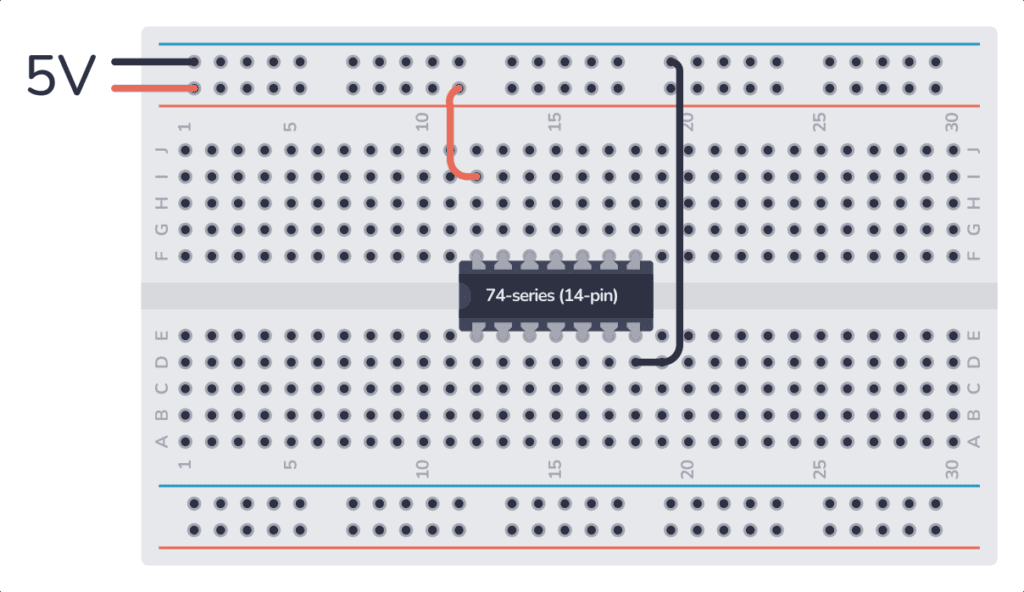

Umdwebo 4: IC 7400 in Digital Electronics application

I-IC 7400 isetshenziswa kabanzi ezinhlelweni ezahlukahlukene:

Izinhlelo Zokuphepha: Izinqubo zokufaka ezivela ekusondeleni noma ezinzwa ezindlini ukuze zibangele ama-alamu.

Izinhlelo Zokuqwashisa: Amanga amazinga okushisa ama-freezer futhi aqhakambisa izexwayiso uma imibundu iwela.

Ama-alamu we-Theft: Ithola izinguquko emazingeni akhanyayo futhi kubangela ama-alamu, imvamisa ezinhlelweni zokweba ezibucayi.

I-automation: Ilawula ukusatshalaliswa kwamanzi ezinhlelweni zokunisela ezizenzakalelayo ngokucubungula amazinga omswakama wenhlabathi.

Kuzo zonke lezi zinhlelo zokusebenza, i-IC 7400 iqinisekisa ukwenza izinqumo okuthembekile ngokucushwa okulula, okunamandla okunengqondo.Ukuzivumelanisa nezimo kanye nokubulula kwayo kwenza kube ukukhetha okuthandwayo kuyo yonke imboni eminingi.

Ukugcina

I-IC 7400 iyaqhubeka nokuba yingxenye ethembekile ku-Digital Circuit design ngenxa yokusebenza kwayo okunamandla, ukuguquguquka nokusebenza kwezindleko.Ngenkathi ubuchwepheshe obusha obusha bunganikela ngejubane elisheshayo kanye nokusetshenziswa kwamandla okuphansi, i-IC 7400 ihlala iyindlela ebalulekile yonjiniyela nama-hobbyists ngokufanayo.Amandla awo okuphatha imisebenzi ehlukahlukene - kusuka ezinhlelweni zokuphepha eziya ekujuleni kwe-automated okuzenzakalelayo-kukhombisa ukuguquguquka kwayo.Ukuthembela okufakazelwe kwe-IC 7400 kukwenza kube yitshe legumbi kuzona zombili izindlela zomfashini kanye nemiklamo yedijithali yesimanje yedijithali, ukuqinisekisa ukusetshenziswa kwayo okuqhubekayo kuyo yonke imboni kanye nezicelo.
