Indlela I-Hysteresis Ekuthinta Ngayo Ukusebenza Kwesekethe, Ukuzinza, Nokusebenza Kahle
2026-05-14 71

I-Hysteresis ingumqondo obalulekile kuma-electronics ochaza ukuthi kungani ezinye izinhlelo ziphendula ngendlela ehlukile ngokusekelwe esimweni sazo sangaphambilini.Esikhundleni sokusabela ngokushesha kuzo zonke izinguquko ezincane zokufakwayo, izinhlelo ze-hysteretic zisebenzisa umphumela wenkumbulo osiza ukuthuthukisa ukuzinza nokunciphisa ukushintsha okungafuneki.Lokhu kuziphatha kusetshenziswa kakhulu kuziqhathanisi, izibangeli ze-Schmitt, izinhlelo kazibuthe, namandla kagesi ukuze kudaleke ukusebenza kwesekethe okuthembekile.Ukuqonda ukuthi i-hysteresis isebenza kanjani kusiza ukuchaza umthelela wayo ekusebenzeni, ukusebenza kahle, kanye nokwakhiwa kwe-elekthronikhi okusebenzayo.

Ikhathalogi

Iyini i-Hysteresis ku-Electronic Circuits?

I-Hysteresis kumasekethe e-elekthronikhi isho isimo lapho ukuphuma kwesistimu kungancikile kuphela ezimeni zokufakwayo zamanje kodwa nasezifundeni zokusebenza zangaphambilini.Esikhundleni sokusebenzisa i-threshold eyodwa yokushintsha, amasistimu we-hysteretic ngokuvamile asebenza ngamaphoyinti ahlukene wokuvula nawokuvala.Umehluko phakathi kwalawa ma-threshold wakha iwindi le-hysteresis.

Ku-electronics ephathekayo, i-hysteresis idala umphumela wenkumbulo.Uma idivayisi ishintsha isimo, ayihlehli ngokushesha lapho izimo zokufakwayo ziguquguquka kancane kwelinye icala.Lokhu kuziphatha kuvumela amasistimu ukuthi agcine ukusebenza okubikezelwayo ngaphansi kwezimo eziguqukayo.

I-Hysteresis isetshenziswa kabanzi ku:

• Amasekhethi okuqhathanisa

• Ama-Schmitt trigger

• Amandla kagesi

• Amasistimu okugcina kazibuthe

• Izinhlelo zokulawula izimboni

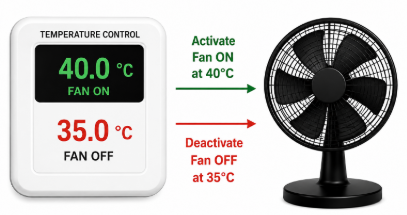

Umfanekiso 2. I-Fani Elawulwa Izinga lokushisa isebenzisa ama-Threshold Ahlukene OVULE KANYE NO-VALIWE Okusebenza Okuzinzile

Ngokwesibonelo, ifeni yokupholisa ingase isebenze ngo 40°C kodwa hlala usebenza kuze kube yilapho izinga lokushisa lehla ngaphansi 35°C.Ukusebenzisa okuhlukile VULIWE futhi OFF imibundu ivimbela ukuhamba ngebhayisikili okusheshayo lapho izimo zokusebenza zishintshashintsha eduze kwendawo emisiwe.

Ngaphandle kwe-hysteresis, amasistimu asebenza eduze kwamazinga e-threshold angase asabele ngokuqhubekayo kusignali encane v ariat ions.Lokhu kuziphatha kungaveza ingxoxo edluliselwe phambili, ukucupha okungamanga, ukusebenza okungazinzile, nomsebenzi wokushintsha ngokweqile.

Ngenxa yekhono layo lokusekela ukuthathwa kwezinqumo okuzinzile ngaphansi kwezimo ezishintshashintshayo, i-hysteresis ihlala iyisimiso esibalulekile ekwakhiweni kwe-elekthronikhi yesimanje.

Isebenza kanjani i-Hysteresis ku-Real Systems

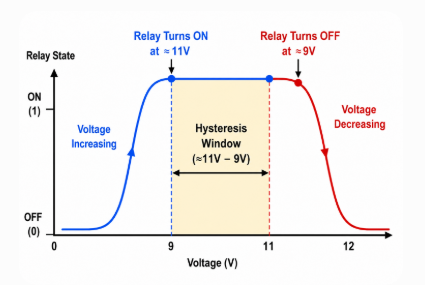

Umfanekiso 3. I-Relay Switching Behaviour ebonisa i-Threshold Ehlukene IVULIWE futhi VALIWE ngewindi le-Hysteresis

Esinye sezibonelo ezilula ze-hysteresis sivela ekusebenzeni kokudluliselwa.

Cabanga a 12V edluliselwe ixhunywe ekunikezeni amandla okuguquguqukayo.

I-Relay Switching Behaviour

• Amandla kagesi aya ngokuya enyuka esuka ku-0V

• I-relay isebenza cishe ku-11V

• Amandla kagesi ayehla kancane

• I-Relay ihlala isebenza

• I-relay ekugcineni IYAVALA eduze ne-9V

Umehluko phakathi kwe-activation ne-deactivation voltage ubizwa ngokuthi i- iwindi le-hysteresis.

I-relay igcina okwesikhashana isimo sayo sangaphambilini kunokuba iphendule ngokushesha ezinguqukweni ezincane zamandla kagesi.Lesi simiso esifanayo sibonakala ezinhlelweni ezithintekayo umsindo kagesi, i-voltage ripple, i-electromagnetic interference (EMI), kanye nokuguquguquka kwe-thermal.Lezi ziphazamiso zingakwazi ukwethula ama-ion amancane we-v ariat kumasignali nezimo zokusebenza, okwenza ukuziphatha okuzinzile kwe-threshold kube nzima kakhulu ukulondoloza ngaphandle kwe-hysteresis.

I-Hysteresis iqinisa izinqumo ze-threshold ngaphansi kwezimo ezishintshayo futhi inciphisa imicimbi yokushintsha ngokweqile engase ifinyeze isikhathi sokuphila sengxenye.Yingakho i-hysteresis ifakwe ngamabomu ezinhlelweni eziningi zesimanje zikagesi.

Izimiso Eziyinhloko kanye nezimbangela ze-Hysteresis

Isici esichazayo se-hysteresis si ukuziphatha kwenkumbulo.Uhlelo lwe-hysteretic luphendula ngokuvumelana nezimo zombili zamanje kanye nezimo zokusebenza zangaphambili.Ngenxa yalokho, ukukhulisa okokufaka kanye nokuncipha kokufaka kulandela izindlela ezihlukene zokuphendula.

Lokhu kwakha isici i-hysteresis loop.

I-Rate-Dependent vs Rate-Independent Hysteresis

Isici	I-Rate-Independent	Kuncike kwisilinganiso
Impendulo	Ikakhulukazi engashintshile	Iyahluka ngesivinini
Ukuzwela	Phansi	Phezulu
Izicelo Ezijwayelekile	Ozibuthe baphakade	Amandla kagesi
Ukusetshenziswa kobunjiniyela	Ukugcinwa kwamagnetic	Ukuhlaziywa kokushintsha okunamandla

Izimbangela Eziyinhloko ze-Hysteresis

• Ukuqondanisa Kwesizinda Sezibuthe

Kuzinto zikazibuthe, izizinda kazibuthe ezincane zingahlala ziqondaniswe ngokwengxenye ngisho nangemva kokuba insimu yangaphandle kazibuthe isusiwe.Lokhu kuqondanisa okuyinsalela kudala umphumela wenkumbulo onomthelela ekuziphatheni kwe-magnetic hysteresis.

• I-Charge Trapping

Emishinini ye-semiconductor, amashaji kagesi avaleleke angabambezela ukushintshwa kwezimpendulo futhi abangele ukuziphatha kwedivayisi ukuthi kuncike ngokwengxenye kuzimo zikagesi zangaphambilini.Lo mphumela uvame ukubonwa kubuchwepheshe benkumbulo namasistimu asekelwe ku-transistor.

• Imithelela yeMechanical kanye neThermal

Ukunyakaza kwemishini nezinga lokushisa i-v ariat ions kungethula izimpendulo ezibambezelekile phakathi kokuziphatha okokufaka nokuphumayo.Le miphumela ivame ukubonwa kuma-relay, izinzwa, nezinhlelo ezilawulwa izinga lokushisa lapho izinguquko zomzimba zithonya ukusebenza kwesistimu.

• Impendulo Enhle

Amasekethe amaningi e-elekthronikhi akhiqiza ngamabomu i-hysteresis ngamanethiwekhi empendulo.Impendulo enhle ishintsha imikhawulo futhi isiza ukudala ukuziphatha okulawulwa kakhulu.Le ndlela isetshenziswa kabanzi ekuqhathaniseni, izibangeli ze-Schmitt, namasekethe e-amplifier okusebenza ukuze kuthuthukiswe ukuzinza kwesignali ngaphansi kwezimo ezishintshayo.

Ukuqonda izihibe zeMagnetic Hysteresis

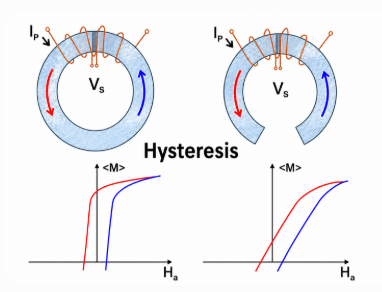

Umfanekiso 4. Magnetic Hysteresis Loop ebonisa Izindlela Ezihlukile Zokusebenza Zibuthe ngesikhathi Sokushintsha Izinkambu Zezibuthe

Izinto zikamagnetic zinikeza esinye sezibonelo ezicacile zokuziphatha kwe-hysteresis.I-Magnetic hysteresis yenzeka lapho izinto zigcina uzibuthe ngemva kokususwa kwensimu kazibuthe yangaphandle.

Izinto ze-Ferromagnetic njengensimbi, i-nickel, i-cobalt, nensimbi ye-silicon ngokwemvelo ibonisa lo mphumela ngoba izizinda kazibuthe zangaphakathi zingase zihlale ziqondaniswe ngokwengxenye ngisho nangemva kokushintsha kwezimo zensimu.

Ukuqonda i-Hysteresis Loop

I-hysteresis loop ichaza ubudlelwano phakathi:

• Amandla enkundla kazibuthe (H)

• I-Magnetic flux density (B)

B = f(H)

Ukukhula nokuncipha kwezinkundla kazibuthe kulandela izindlela ezihlukene, kudala iluphu evaliwe ebonisa ukuziphatha kwenkumbulo kazibuthe.I-hysteresis loop ebanzi ngokuvamile ikhombisa ukulahleka kwamandla okukhulu, ukwanda kokukhiqizwa kokushisa, kanye nokuncipha ukusebenza kahle kukonke.

Amajika e-Hysteresis acutshungulwa ngokucophelela ngesikhathi sokuklanywa kwama-transformer, ama-motor, nezinhlelo zamandla ngoba ukulahlekelwa ngokweqile kungadala ukucindezeleka okushisayo kwesikhathi eside.

Kugesi osebenzayo wemodi yokushintsha, izinto ze-ferrite zivame ukuthandwa ngoba ukulahleka kwensimbi ye-silicon kukhuphuka kakhulu ngaphansi kokusebenza kwe-high-frequency.

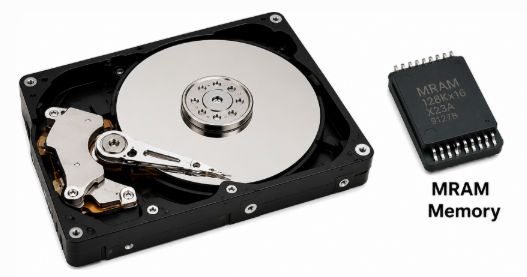

Umfanekiso 5. Amadivayisi Esitoreji Samagnetic asebenzisa i-Hysteresis Yokugcinwa Kwedatha

I-Magnetic Hysteresis ku-Data Storage

Ama-hard drive kanye nobuchwepheshe benkumbulo kazibuthe buthembele ku-hysteresis.Ngenxa yokuthi izinto kazibuthe zigcina uzibuthe ngemva kokususwa kwamandla, ulwazi luhlala lugcinwe ngaphandle kwamandla kagesi aqhubekayo.

Ukusetshenziswa okuvamile kusuka kumadrayivu aqinile, amasistimu we-tape kazibuthe, kanye nobuchwepheshe be-magnetoresistive random-access memory (MRAM), konke okuncike kumagnetic hysteresis ukuze kugcinwe idatha namandla okugcina angaguquki.

Izinto Zezibuthe Eziyinhloko Nokuqhathaniswa Kokusebenza

Ukukhethwa kwezinto eziyinhloko kuthinta ngokuqondile ukulahlekelwa kwe-hysteresis, ukusebenza kahle, ukukhiqizwa kokushisa, nokusebenza kwesikhathi eside kuma-transformer kanye nezinhlelo zokushintsha.Izinto ezisetshenziswayo ezihlukene ziphendula ngendlela ehlukile kukazibuthe ngenxa yama-ion angu-v ariat esakhiweni se-athomu, ukuphoqeleka, ukufinyeleleka, nezici zokugcina kazibuthe.Lo mehluko ubaluleke kakhulu kuma-transformer, ama-inductors, izinto zikagesi ezishintshayo, amamotho kagesi, kanye nezinhlelo zamandla amaza aphezulu.

Ukuqhathaniswa kwezinto ezivamile zeMagnetic Core

Okubalulekile	Imvamisa	Isihlobo Ukulahlekelwa Okuyinhloko	Isihlobo Izindleko	Okujwayelekile Izinhlelo zokusebenza
I-Silicon Steel	50-60 Hz	Kuphakathi	Phansi	Ama-Utility transformers, ama-motor
I-Ferrite	kHz–MHz	Phansi	Maphakathi	I-SMPS, izifunda ze-RF, i-EMI ukucindezelwa
I-Amorphous Metal	50-400 Hz	Phansi Kakhulu	Phezulu	Ama-transformer awonga amandla

Nakuba zonke izinto ezisetshenziswayo zisekela ukusebenza kazibuthe, ukusebenza kwazo kungahluka kakhulu ngaphansi kwezimo ezingokoqobo.Ukukhethwa kwezinto ngokuvamile kuncike ezidingweni zokusebenza esikhundleni sokusebenza kwethiyori kuphela.

Ngokwesibonelo, ama-utility transformers avame ukusebenzisa insimbi ye-silicon ngenxa yokuphumelela kwezindleko zayo kanye nokuthembeka okusekelwe isikhathi eside.Izinsiza zamandla ezimvamisa ephezulu zivame ukusebenzisa i-ferrite ngenxa yokuthi ukumelana kwayo nogesi okuphezulu kunciphisa ukulahleka kwamanje kwe-eddy.Ama-transformer awonga amandla aya ngokuya asebenzisa izinto ze-amorphous ngoba ukulahlekelwa okuncane kungathuthukisa ukusebenza kwesikhathi eside.Ukuqonda lokhu kuhwebelana kusiza ukulinganisa ukuziphatha okushisayo, imigomo yokusebenza kahle, nezidingo zokusebenza.

I-Soft vs Hard Magnetic Materials

Izinto zikazibuthe zivame ukuhlukaniswa zibe izigaba ezithambile neziqinile ngokuya ngokuthi ziba yizibuthe kalula kanjani futhi zingasebenzi uzibuthe.

Impahla	Ithambile Izinto Zezibuthe	Kunzima Izinto Zezibuthe
Ukuphoqwa	Phansi	Phezulu
Ukulahlekelwa Kwe-Hysteresis	Phansi	Phezulu
Ukusetshenziswa Okuyinhloko	Ama-Transformers	Ozibuthe baphakade
Ukugcinwa Kwedatha	Phansi	Phezulu

Izinto ezithambile zikazibuthe zingashintsha ngokushesha izimo kazibuthe ngokufaka okuphansi kwamandla.Zikhethwa kuma-transformer nama-inductors lapho ukujikeleza okuphindaphindiwe kazibuthe kwenzeka.

Izinto zikazibuthe eziqinile zimelana ne-demagnetization futhi zigcina izakhiwo kazibuthe isikhathi eside.Lezi zinto zivame ukusetshenziswa kumamagnethi ahlala njalo kanye nezinhlelo zokugcina kazibuthe.

Ukucatshangelwa Okusebenzayo Kokukhetha

Ukukhetha izinto eziwumgogodla kazibuthe kuhilela okungaphezu kokukhetha inketho ngokulahleka kwe-hysteresis ephansi kakhulu.Ukukhethwa kwezinto kuncike futhi ekucatshangelweni okungokoqobo okufana nemvamisa yokusebenza, izimo ezishisayo, okuqondiwe kokusebenza kahle, imingcele yosayizi, izidingo zokuphatha amandla, kanye nezindleko zizonke.Lezi zici zihlangene zithonya ukusebenza, ukwethembeka, nokufaneleka kwezinhlelo zokusebenza ezithile.

Ngokwesibonelo, ugesi oshintshashintshayo wemvamisa ephezulu ngokuvamile uzuza kuma-ferrite cores ngenxa yokulahlekelwa okuphansi ngesikhathi sokushintsha ngokushesha.Ngaleso sikhathi, ama-utility transformer asebenza kumafrikhwensi egridi ajwayelekile angase aqhubeke nokusebenzisa insimbi ye-silicon ngenxa yokusebenza kahle kwezindleko nokwethembeka okuqinisekisiwe.

Ukukhethwa kwezinto kuthinta ngokuqondile ukusebenza kahle kwesikhathi eside, ukuziphatha okushisayo, kanye nokusebenza kwesistimu kukonke.Ukuqonda lokhu kuhwebelana kukuvumela ukuthi ukhethe izinto ezisetshenziswa kazibuthe ezifanelana kangcono nezidingo zohlelo lokusebenza.

I-Hysteresis kumadivayisi we-Semiconductor

Umfanekiso 6. SCR kanye namadivayisi e-TRIAC asetshenziswa Ekushintsheni Izinhlelo zokusebenza

Ama-Thyristors angamadivayisi okushintsha ama-semiconductor aklanyelwe ugesi ophezulu kanye nezinhlelo zokusebenza zamanje.Ngokungafani nama-transistors avamile aphendula ngokuqhubekayo ukuze alawule amasignali, ama-thyristors asebenzisa indlela yokuxhuma evumela idivayisi ukuthi ihlale isebenza ngemva kokuqaliswa.

Lokhu kuziphatha kokusebenza kudala isici senkumbulo ngoba ukuphuma kwedivayisi kuncike ngokwengxenye esimweni sayo sangaphambilini.Uma sekucushiwe, ukuqhuba kuyaqhubeka kuze kube yilapho izimo zokusebenza ziwela ngaphansi kwemikhawulo ethile kagesi.

Indlela I-Latching Behavior esebenza ngayo

Amadivayisi afana I-Silicon Controlled Rectifiers (SCRs) futhi Ama-TRAC thembela ekuxhumeni nasekubambeni izici zamanje.

Ngemva kokuthola ukushaya kwesango, idivayisi ingena esimweni sokuqhuba futhi iqhubeke nokusebenza ngisho nalapho isignali yesango isusiwe.Ukuqhuba kuma kuphela ngemva kokwehla kwamanje ngaphansi komkhawulo wamanje wokubamba.

Ngenxa yokuthi ukuqalisa nokuvala kwenzeka ngaphansi kwezimo ezihlukene zikagesi, i-thyristors ibonisa ukuziphatha okufana ne-hysteresis.

Amapharamitha Abalulekile Athinta Ukusebenza

• I-Latching yamanje: Ubuncane bamanje obudingekayo ngokushesha ngemva kokuyicupha.

• Ukubamba Okwamanje: Ubuncane bamanje obudingekayo ukuze kugcinwe ukuqhuba.

• I-Gate Trigger Yamanje: Okwamanje iyadingeka ukuze uvule idivayisi.

• I-Voltage Yokuvimba: Amandla kagesi aphezulu WOKUVAMILE.

Isibonelo Sokukhetha Idivayisi

Isicelo	Kuphakanyisiwe Idivayisi	Isizathu
Isilawuli sesivinini sabalandeli	Idatha ye-BT136 TRIAC	Ukushintsha kwe-AC okuphindwe kabili amandla
Ukulawulwa kwezimoto zezimboni	Idatha ye-TYN612 SCR	I-voltage ephezulu kanye neyamanje ikhono lokuphatha
Izifunda zezemfundo	I-TIC106 SCR	Ukusebenza okulula kwamandla aphansi futhi ukufinyeleleka

Inqubo yokukhetha ngokuvamile incike ekutheni idivayisi isebenzisana kanjani nendawo yokusebenza.

Ngokwesibonelo, isilawuli sesivinini sabalandeli basekhaya noma i-light dimmer ngokuvamile sisebenzisa i- Idatha ye-BT136 TRIAC ngoba amandla ayo okushintsha okukabili enza ukulawula kwe-AC kube lula.Njengoba ukushintshana kwamanje kugeleza kuzo zombili izinkomba, i-TRIAC ingaqhuba phakathi nawo womabili amahhafu omjikelezo we-AC ngaphandle kokudinga izingxenye zokushintsha ezengeziwe.Lesi sici sinciphisa ubunkimbinkimbi besekethe futhi senza ukuqaliswa kusebenze kakhudlwana kuma-compact umthengi kagesi.

I-Industrial motor-control systems ingase ivune Idatha ye-TYN612 SCR, eklanyelwe ukuphatha izimo zamandla aphezulu kanye nezindawo zokusebenza ezinzima kakhulu.Izinhlelo zokusebenza ezibandakanya imithwalo yamanje emikhulu kanye nezidingo zokulawula amandla ngokuvamile zizuza emandleni okushintsha aqinile nokuqina okuthuthukisiwe.

Kumaphrojekthi ezemfundo kanye nezinhlelo zokusebenza zokulawula amandla aphansi, i I-TIC106 SCR ihlala iyindlela esebenzayo ngenxa yokuziphatha kwayo okulula nokufinyeleleka kokuhlolwa.Isetshenziswa kaningi kumasekhethi okushintsha isingeniso lapho ukuqondakala kalula kanye nokusetshenziswa kubalulekile.

Le ndlela esekelwe kuhlelo lokusebenza ibonisa ukuthi ukukhethwa kwedivayisi akuncikile kuphela ekucacisweni kukagesi kodwa futhi nasezimfuneko zesistimu, izimo zokusebenza, nokucatshangelwa kwesakhiwo esisebenzayo.

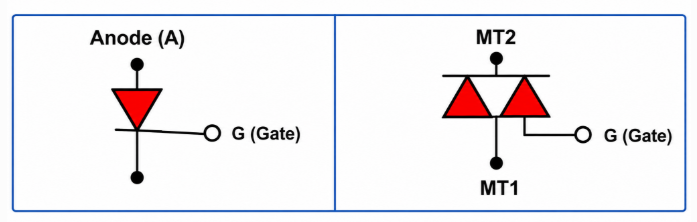

Umfanekiso 7. SCR kanye nezimpawu ze-TRIAC ezibonisa Izakhiwo Ezihlukile Zokushintsha

I-SCR vs TRIAC

Isici	I-SCR	I-TRIAC
Indlela Yamanje	Isiqondiso esisodwa	Izikhombisi-ndlela ezimbili
Ukushintsha kwe-AC	Inomkhawulo	Kuhle kakhulu
Izicelo ze-DC	Okuvamile	Okungajwayelekile
Ukulawula Amandla	Phezulu	Kuphakathi
Ukusetshenziswa Okuvamile	Izinhlelo zezimboni	Ezohwebo izinto zikagesi

I-Hysteresis ku-Comparator kanye ne-Schmitt Trigger Circuits

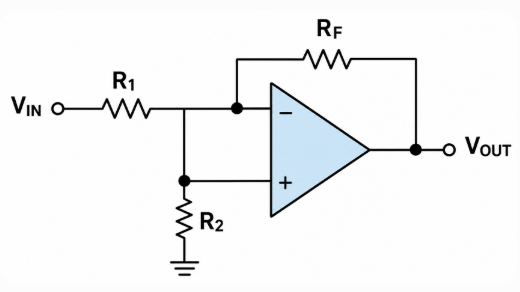

Umfanekiso 8. Umjikelezo Wokuqhathanisa usebenzisa i-Positive Feedback ye-Hysteresis

Amasekhethi okuqhathanisa amelela enye yezinhlelo ezisetshenziswa kakhulu ze-hysteresis kuma-electronics.Inhloso yabo ukuqhathanisa isignali yokufaka ngokumelene ne-voltage yereferensi futhi bakhiqize okukhiphayo ngokuya ngomphumela wokuqhathanisa.

Amasistimu wangempela avame ukusebenza ezindaweni ezinomsindo kagesi, i-ripple, nokuguquguquka kwesignali.Ngaphansi kwalezi zimo, ama-ion ama-v ariat amancane eduze kwamazinga omkhawulo angase athinte ukuvumelana kokukhiphayo.

I-Hysteresis ithuthukisa ukuziphatha kwe-threshold ngokudala amazinga okushintsha ahlukene, okuvumela amasekhethi okuqhathanisa ukuthi asebenze ngokwethembeka ngaphansi kokushintsha kwezimo zesignali.

Ukuqhathanisa Ukusebenza Kwesiqhathanisi

Ipharamitha	Ngaphandle I-Hysteresis	Nge I-Hysteresis
Ukucupha okungamanga	Njalo	Okuncane
Ukushintsha Ukuzinza	Impofu Eseduze no-Threshold	Izinzile
Relay Chatter	Okuvamile	Okungavamile
Ukuzwela Komsindo	Phezulu	Yehlisiwe
Ukuthembeka Kokukhiphayo	Kuphakathi	Kuthuthukisiwe

Ukuqhathanisa kukhombisa ukuthi kungani i-hysteresis ivame ukusetshenziswa ezindaweni zokusebenzelana zezinzwa, izinhlelo ezishumekiwe, nezinhlelo zokusebenza zokulawula izimboni.

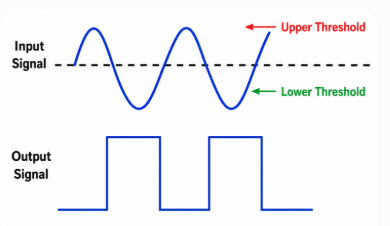

Umfanekiso 9. Schmitt Trigger Operation usebenzisa i-Upper and Lower Thresholds

Ukuqonda Ukusebenza kwe-Schmitt Trigger

I-Schmitt trigger isebenzisa ngamabomu impendulo ukuze idale i-hysteresis, ngakho-ke ayishintshi ku-voltage eyodwa yomkhawulo.Esikhundleni salokho, isebenzisa amaphuzu okushintsha amabili ahlukene: i-voltage ephezulu ne-threshold voltage ephansi.Lokhu kwenza ukuguqulwa kwesignali kuhlanzeke futhi kuzinze.Kumasistimu ashumekiwe asebenzayo, izibangeli ze-Schmitt zivame ukungezwa ekuxhumaneni kwezinzwa nokokufaka kokushintshwa komshini ngenxa yokuthi ukushintshashintsha kwesignali okuncane, umsindo, noma ukugxuma kokuxhumana kungase kudale izinguquko eziningi ezingahlosiwe.

I-Hysteresis ku-Op-Amp kanye ne-Power Electronics

Ama-amplifiers asebenzayo zisetshenziswa kakhulu ezinhlelweni zokuzwa, ukucutshungulwa kwesignali, namasekethe okulawula i-analog ngenxa yokuzwela kwawo namandla okukhulisa.Uma amasignali okokufaka ehluka kancane noma esebenza eduze nezimo zomkhawulo, ukushintshashintsha okuncane kungase kuthinte ukuvumelana kokushintsha futhi kudale ukuziphatha kokukhiphayo okungazinzile.

Ukuze kuthuthukiswe ukusebenza, amasekethe e-op-amp avame ukwethula i-hysteresis ngamanethiwekhi empendulo eyakhayo.Le ndlela idala imikhawulo ehlukene yokuvula nokuvala, okuvumela ukushintsha ukuziphatha ukuthi kuhlale kulawulwa kakhulu ngaphansi kokushintsha kwezimo zokufaka.

Isibonelo esisebenzayo se-hysteresis sivela ku ama-smart air-conditioning systems.

Cabangela isistimu enezinga lokushisa eliqondiwe legumbi 26°C.Ngaphandle kwewindi le-hysteresis, ukuguquguquka okuncane kwezinga lokushisa endaweni ebekiwe kungase kubangele ngokuphindaphindiwe ukusebenza kwe-compressor.

Izimo zokusebenza eziyisibonelo zihlanganisa ukwenza kusebenze ukupholisa ku 28°C nokuvala ukupholisa ku- 24°C.

Lokhu 4°C ukuhlukana kudala iwindi le-hysteresis elinciphisa umsebenzi wokushintsha okungadingekile futhi livumela isistimu ukuthi isebenze phezu kwebanga lokushisa elibanzi ngaphambi kokushintsha isimo.

Ukuziphatha Kwesistimu Yokuqhathanisa

Lawula Indlela	I-Compressor Imijikelezo ngehora	Umphumela
Ngaphandle kwe-hysteresis	Phezulu	Ukwenyuka kokugqoka kwe-compressor kanye ukusebenza okungazinzile
Ngewindi le-hysteresis elingu-4°C	Phansi	Ukusebenza okuthuthukisiwe nokuncipha ukushintsha umsebenzi

Amanani angenhla amelela ukuziphatha okuqhathanisayo okusebenzayo kunezilinganiso ezingaguquki ngenxa yokuthi imvamisa yokushintsha iyahlukahluka kuye ngobukhulu begumbi, izimo ezishisayo, ikhwalithi yokuhlukanisa, nezici zendawo ezungezile.

Noma kunjalo, isiqhathaniso sibonisa isimiso esibalulekile sokuklama.Amasistimu anobubanzi obuncane be-hysteresis noma angekho angase ashintshe ngokuphindaphindiwe eduze nezimo ze-threshold, andise ingcindezi kagesi futhi ehlise ubude besikhathi sokuphila kwengxenye.Amawindi okusebenza abanzi ngokuvamile anciphisa imvamisa yokuhamba ngamabhayisikili futhi athuthukise ukungaguquguquki kokusebenza.

Kumasistimu asebenzayo, umsebenzi wokushintsha oncishisiwe ungathuthukisa ukusebenza kahle kwamandla, wehlise ingcindezi yokushisa, futhi usekele impilo ende ye-compressor.Izindlela ezifanayo zokulawula zisetshenziswa kakhulu ezinhlelweni zemvelo, ukulawulwa kwezinga lokushisa kwezimboni, kanye nogesi wabathengi lapho ukuziphatha okuzinzile kubalulekile.

Lesi sibonelo sibonisa ukuthi i-hysteresis ayithinti kanjani nje kuphela ukuziphatha kwesifunda kodwa nokusebenza kwesistimu yangempela kanye nokwethembeka kwesikhathi eside.

Ukulinganisa kanye Nokwakheka kweHysteresis

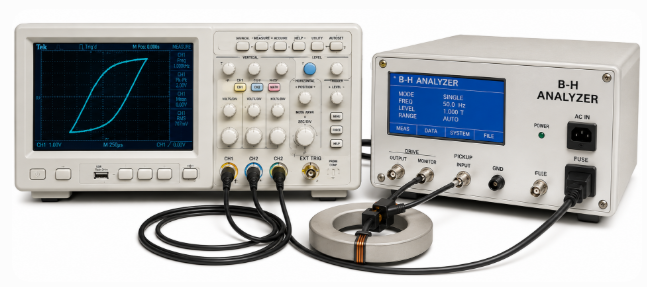

Umfanekiso 10. I-Oscilloscope ne-BHH Analyzer ye-Hysteresis Measurement

Ukulinganisa i-hysteresis kusiza ukuhlola ukuthi izingxenye ziziphatha kanjani ngaphansi kokushintsha kwezimo zokusebenza.Kunokuvele kukhombe ukuthi i-hysteresis ikhona yini, izilinganiso ziphinde zinqume ukuthi kuthinta kakhulu kangakanani ukushintsha ukuziphatha, ukusebenza kahle, nokusebenza kwesikhathi eside.

Amathuluzi ahlukene asetshenziswa ngokuya ngesistimu ehlaziywayo:

• Ama-Oscilloscopes - bona ngeso lengqondo ama-switch threshold kanye nokuziphatha kwesignali kumasekhethi afana neziqhathanisi nama-trigger e-Schmitt.

• I-B-H Curve Analyzers - hlola izinto ezisetshenziswa kazibuthe ngokulinganisa ukuphoqelela, ukugcinwa, nokulahlekelwa kwe-hysteresis.

• Amasistimu Wokwenza Izinhlamvu Zemagnetic - funda ukuziphatha kazibuthe ocwaningweni nobuchwepheshe bokugcina.

• Amasistimu Wokuhlola Okuzenzakalelayo - athuthukisa ukuphindaphinda kanye nokuhlola kwengxenye enkulu.

Izilinganiso ezijwayelekile zihlanganisa:

• Ukuphoqeleka - amandla kazibuthe adingekayo ukuze kukhishwe i-magnetization eyinsalela

• Ukugcinwa ngozibuthe - okusele kuzibuthe ngemva kokususwa kwenkundla

• I-Hysteresis Range - ukuhlukaniswa phakathi kokushintsha ama-threshold

• Ukushintsha ama-Threshold - amanani abangela izinguquko zesimo

Imiphumela yokulinganisa ithonya ngokuqondile ukukhethwa kwezinto kanye nokwakheka kwesistimu.Ukulahlekelwa kwe-hysteresis ngokweqile kungase kukhuphule ukukhiqizwa kokushisa, kuyilapho ama-threshold akhethwe kabi angase anciphise ukusebenza ngendlela efanayo.

Ukuthuthukisa i-Hysteresis ku-Electronic Design

I-Hysteresis vs Non-Hysteretic Systems

Isici	I-Hysteresis	I-Non-Hystertic
Umsindo Ukungavikeleki	Phezulu	Phansi
Ukuzinza	Okungcono	Ukuzinza okuncane
Ukushintsha Imvamisa	Phansi	Phezulu
Ukuzwela	Phansi	Phezulu
Amanga Ukucupha	Yehlisiwe	Okuvame kakhulu
Isikhathi Eside Ukwethembeka	Okungcono	Yehlisiwe

Lesi siqhathaniso sibonisa ukuthi kungani i-hysteresis yethulwa ngamabomu ezinhlelweni eziningi ezisebenzayo.

Izinto ezimbalwa zithonya ukuziphatha kwe-hysteresis, okuhlanganisa umsindo kagesi, izinga lokushisa lokusebenza, i-ion v ariat ion, isivinini sokushintsha, izimo ezishisayo, nezimfuneko zokuphendula.Ibhalansi yokuklama efanelekile incike kuhlelo lokusebenza oluthile nendawo yokusebenza.

Izinselele kanye Neziqondiso Zocwaningo Lwesikhathi esizayo

Nakuba i-hysteresis ithuthukisa ukuziphatha kwesistimu, ingase futhi idale izinselele zokuklama njengoba amadivayisi aba mancane futhi asebenza ngesivinini esiphezulu.

Izinselelo zamanje ezihlotshaniswa ne-hysteresis zihlanganisa ukulahlekelwa kwamandla kumasistimu kazibuthe, ukukhiqizwa kokushisa, imiphumela yokuguga kwezinto ezibonakalayo, inkimbinkimbi yokumodela, nokulahlekelwa okukhulayo kumafrikhwensi aphezulu okusebenza.Le mikhawulo ingathinta ukusebenza kahle okuphelele, ukwethembeka, nokusebenza kwesistimu yesikhathi eside.

Ucwaningo oluqhubekayo luyaqhubeka nokuhlola izinto ezisetshenziswa kazibuthe ezilahlekelwa kancane, amasu okuthuthukisa asiza i-AI, ubuchwepheshe bememori ye-spitronic, izindlela zokulawula i-hysteresis eguquguqukayo, kanye nezinhlelo ezithuthukisiwe ze-semiconductor.Lezi ntuthuko zihlose ukuthuthukisa ukusebenza kahle, ukunciphisa ukulahlekelwa, nokusekela ukuziphatha kwesistimu okuhlakaniphe kakhulu.

Izinhlelo ze-elekthronikhi zesikhathi esizayo zingase zisebenzise izindlela eziguquguqukayo ze-hysteresis ezilungisa ngokuzenzakalelayo indlela yokusebenza ngokuvumelana nezimo ezishintshayo.Njengoba amadivaysi eqhubeka nokuthuthuka ngesivinini nobunkimbinkimbi, ukulawulwa kwe-hysteresis okusebenzayo kuzohlala kuwukucatshangelwa okubalulekile ekwakhiweni kwesistimu ye-elekthronikhi.

Isiphetho

I-Hysteresis isiza amasistimu kagesi ukuthi asebenze ngokwethembeka ngokuthuthukisa ukuzinza nokunciphisa ukuziphatha okungafuneki kokushintsha.Isetshenziswa kakhulu ezintweni kazibuthe, kumadivayisi we-semiconductor, amasistimu okulawula, namandla kagesi lapho izimo zokusebenza zishintsha njalo.Nakuba ingethula ukulahlekelwa kwamandla kwezinye izinhlelo zokusebenza, ukwakheka okufanele kwe-hysteresis kungathuthukisa ukusebenza kahle nokusebenza kwesikhathi eside.Ukuqonda i-hysteresis kuvumela izinqumo ezingcono ekwakhiweni kwesekethe kanye nokwenza kahle kwesistimu.
