Ayini ama-Surface-Mount Device (SMD) Diode?

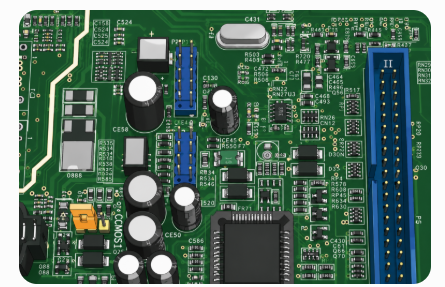

I-Surface-Mount Device (SMD) ama-diode ayizingxenye ezihlangene ze-semiconductor ezisetshenziselwa ukulawula ukuqondiswa kwamandla kagesi kumasekethe esimanje kagesi.Ngokungafani nama-diode endabuko embobo asebenzisa izintambo zocingo ezifakwe kumabhodi esekethe aphrintiwe (ama-PCB), ama-SMD diode afakwa ngqo PCB ukusetshenziswa kwamanzi I-Surface-Mount Technology (SMT).

Emgogodleni wabo, ama-diode e-SMD enza njengawo ama-valve kagesi endlela eyodwa.Zivumela okwamanje ukuthi kugeleze ohlangothini olulodwa kuyilapho kuvimbela i-current reverse engalimaza izingxenye ze-elekthronikhi ezibucayi.

Ama-diode e-SMD asebenza nge-a I-semiconductor ye-PN junction isakhiwo esilawula ukuqhutshwa kukagesi ngesikhathi phambili futhi ukuhlehlisa ukuchema izimo.Ngokuya ohlotsheni lwe-diode, bangenza imisebenzi eminingana ebalulekile yesekethe, okuhlanganisa ukulungiswa kwe-AC-to-DC, ukulawulwa kwamandla kagesi, ukuvikela ukuhlehla kwe-polarity, ukucindezelwa kwe-electrostatic discharge (ESD), ukushintsha kwesignali enesivinini esikhulu, nokushuna kwamafrikhwensi e-RF.

Ngenxa yokuthi ama-SMD diode asebenzisa amaphakheji ahlangene angenamthofu nezindlela zikagesi ezimfishane, asiza ukuthuthukisa ukusebenza kokushintsha, ubuqotho besignali, nokusebenza kahle kukagesi kumiklamo yesimanje ye-PCB.

Ukuthi I-SMD Diode Ilawula Kanjani Ukugeleza Kwamanje Kuziyingi Ze-Electronic

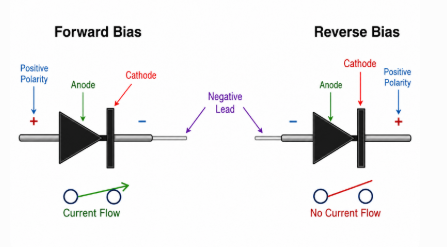

Umfanekiso 2. Phambili futhi Uhlehlise Ukusebenza Kokuchema kwe-Diode ebonisa ukuziphatha kokugeleza kwamanje

Ama-diode e-SMD alawula ukusebenza kwamanje ngokuvumela ukuqhutshwa kukagesi ngesikhathi sokuchema phambili kanye nokuvinjwa kwamanje ngesikhathi sokusebenza kokuhlehla.

Itheminali	Umsebenzi
I-Anode	Okungenayo kwamanje okuhle
I-Cathode	Uhlangothi lwamanje lokuphuma / oluvimbayo

Phakathi ukuchema phambili, ukugeleza kwamanje kusuka ku-anode kuya ku-cathode.Phakathi ukuhlehlisa ukuchema, indawo yokuncipha ngaphakathi kwe-PN junction iyakhula futhi ivimbe ukugeleza kwamanje.

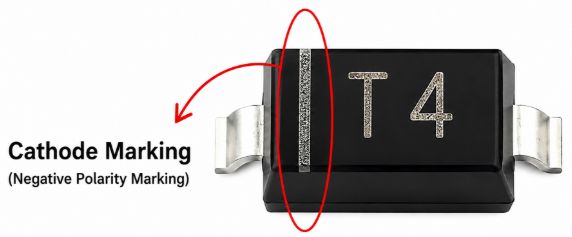

Uhlangothi lwe-cathode luvame ukukhonjwa ngu-a ukumaka umugqa, ukumaka ichashazi, ibhande eliphrintiwe, noma Isikhombi sesikrini sikasilika se-PCB.

Ukufakwa kwe-polarity okulungile kubalulekile ngoba umumo we-diode ongalungile ungase ubangele amasekhethi amafushane, ingxenye eshisa kakhulu, umonakalo wamanje ohlehlayo, ukwehluleka komkhondo we-PCB, kanye nokungaqini kokunikezwa kwamandla.

Ku i-LED yezimoto amasistimu okukhanyisa, ama-diode okulungisa afakwe ngokungalungile angavumela i-voltage yebhethri ehlehlayo ukuthi ifinyelele kuma-IC omshayeli azwelayo, yingakho ama-Schottky diode okuvikela okuhlehlayo evamise ukungezwa ukusiza ukuvimbela umonakalo we-ECU oyinhlekelele ngesikhathi sokuqalisa noma ukushintsha ibhethri.

Kungani I-SMD Diode Ikhethwa Ku-Electronics Yesimanje

Ama-SMD diode athandwa kakhulu kuma-electronics wesimanje ngoba ayasekela Izakhiwo ze-PCB ezihlangene, ukukhiqizwa kwe-SMT okuzenzakalelayo, imiklamo yedivayisi engasindi, futhi enokwethenjelwa umhlangano wesifunda onabantu abaningi kakhulu .Ukwakheka kwephakheji yabo encane nakho kuyasiza ukuthuthukisa isignali yobuqotho kanye nezisekelo ukusebenza kahle ezinhlelweni ze-elekthronikhi ezivinjelwe emkhathini.

Emgogodleni wawo, ama-SMD diode asiza ukunika amandla imikhiqizo kagesi emincane futhi esebenza kahle ngaphandle kokudela ukusebenza kukagesi.Njengoba amadivaysi esimanje aqhubeka nokuncipha ngenkathi edinga isivinini sokucubungula ngokushesha kanye nokusebenza kahle kwamandla aphezulu, izingxenye ze-semiconductor ezihlangene sezibaluleke kakhulu ekwakhiweni kwe-PCB.

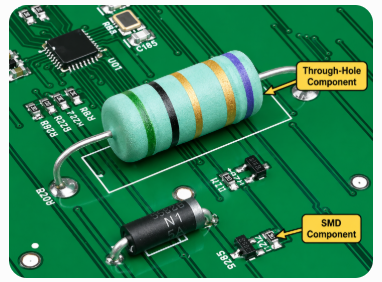

Ngokungafani nezingxenye zendabuko zembobo, ama-SMD diode afakwe ngqo endaweni ye-PCB, okuvumela abakhiqizi ukuthi bazenzele ngokuzenzakalelayo ukuhlangana besebenzisa. imishini yokukhetha indawo enesivinini esikhulu.Lokhu kuthuthukisa kakhulu ukusebenza kahle kokukhiqiza, kunciphisa izindleko zokukhiqiza, futhi kusekela ukukhiqizwa kwama-electronics ngezinga elikhulu.

Ngenxa yokuthi ama-SMD diode asebenzisa izindlela ezimfishane zikagesi, nawo anciphisa i-parasite inductance futhi amandla.Lokhu kuthuthukisa isivinini sokushintsha, ubuqotho besignali, nokusebenza kwemvamisa ephezulu kumasekethe esimanje kagesi.

Kumasistimu wamandla ahambisana nemvamisa ephezulu, ukulahleka kwamandla aphansi kusiza ukunciphisa ukukhiqizwa kokushisa, ukuthuthukisa ukusebenza kahle, nokwelula isikhathi sokuphila sengxenye kumadivayisi kagesi afakwe ngokuqinile.

Ama-diode e-SMD nawo asiza ukuthuthukisa jikelele Ukuthembeka kwe-PCB ngokunciphisa ukucindezeleka kwemishini okubangelwa imikhondo yocingo olude.Isakhiwo sazo esihlangene sizenza zifaneleke kakhulu kumadizayini we-elekthronikhi anomthamo omkhulu futhi ozwela ukudlidliza.

Izinhlelo zesimanje ze-elekthronikhi ziyaqhubeka nokuthembela kuma-diode e-SMD ngoba ahlanganisa usayizi ohlangene, ukuvikelwa kukagesi okuthembekile, ukuziphatha okuphumelelayo kokushintsha, nokuhambisana okuqinile nezinqubo zokukhiqiza ze-PCB ezizenzakalelayo.

Izinhlobo ezahlukene ze-SMD Diode kanye nemisebenzi yazo

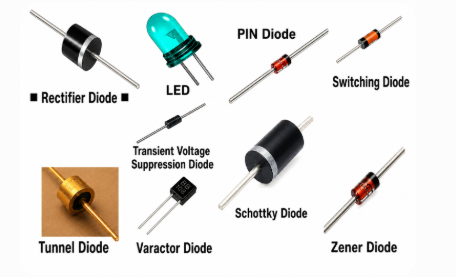

Umfanekiso 3. Izinhlobo Ze-Diode Ezivamile ezisetshenziswa Kuseyingi Kagesi

Ama-diode e-SMD atholakala ngezinhlobo ezimbalwa ezikhethekile, ngohlobo ngalunye oluklanyelwe ukwenza umsebenzi othile kagesi kumasekhethi kagesi.Izindima zabo zihlanganisa ukulungisa kwamanje, ukulawulwa kwamandla kagesi, ukucindezelwa kokuhlinzwa, ukushintsha kwesignali, ukutholwa kokukhanya, nokushuna kwe-RF.

I-Rectifier Diodes: I-Rectifier SMD diode iguqula i-alternating current (AC) ibe yamanje eqondile (DC).Avame ukusetshenziswa kumasekhethi okuguqula amandla lapho okukhiphayo okuzinzile kwe-DC kuyadingeka.

I-Schottky Diodes: Ama-diode e-Schottky SMD aziwa ngama-voltage awo aphansi ahamba phambili kanye nokuziphatha kokushintsha ngokushesha.Zivame ukusetshenziswa kumasekhethi wamandla asebenza kahle kakhulu kanye namasistimu kagesi ashintsha ngokushesha.

I-Zener Diodes: Ama-diode e-Zener SMD alawula i-voltage ngokusebenza kumodi yokuhlehla yokuhlehla.Zisiza ukugcina amazinga kagesi azinzile futhi zivikele izingxenye ezibucayi ezimeni zokugcwala ngokweqile.

Ukushintsha ama-Diodes: Ukushintsha ama-SMD diode aklanyelwe ukusebenza ngokushintsha ngokushesha kumasekhethi wesignali wedijithali kanye nemvamisa ephezulu.Isikhathi sabo sokuphendula esisheshayo sisiza ukuthuthukisa ukusebenza komzila wesignali.

TVS (Transient Voltage Suppression) Diodes: Ama-diode e-TVS SMD avikela ama-circuits kusukela ku-voltage spikes okungazelelwe, ukukhishwa kwe-electrostatic (ESD), kanye nemicimbi yokuhlinzwa yesikhashana engalimaza izingxenye ze-semiconductor.

I-Light-Emitting Diodes (Ama-LED): Ama-LED ama-SMD aguqula amandla kagesi abe ukukhanya okubonakalayo kokukhanyisa, izinkomba zokubonisa, nezinhlelo zokukhanyisa emuva.

Ama-Photodiodes: Ama-Photodiode aguqula ukukhanya okungenayo kube amandla kagesi futhi avame ukusetshenziswa ezinhlelweni zokuzwa optical kanye nezokubona ukukhanya.

I-Varactor (Varicap) Diodes: Ama-diode e-Varactor SMD asebenza njengama-capacitor alawulwa amandla kagesi asiza ukulungisa imvamisa yokushuna kumasekhethi e-RF namasekhethi okuxhumana.

Ama-Tunnel Diodes: Ama-diode e-Tunnel SMD angamadivayisi akhethekile we-semiconductor anesivinini esiphezulu asetshenziswa ku-microwave, i-oscillator, nezinhlelo ze-RF ezithuthukisiwe ngenxa yezici zazo zokushintshwa ngokushesha okukhulu.

Ukuhlaziywa Okuqhathanisayo Kwezinhlobo Ezinkulu ze-SMD Diode

Izinhlobo ezahlukene ze-SMD diode zenzelwe izidingo ezahlukene zikagesi ezifana nesivinini sokushintsha, ukulawulwa kwamandla kagesi, ukuguqulwa kwamandla, nokuvikelwa kwesekethe.Ukuqonda lo mehluko kusiza ukuthuthukisa ukukhethwa kwengxenye yokuzinza kwe-thermal, ukusebenza kukagesi, nokuthembeka kwesikhathi eside.

Isici	Isilungisi	Schottky	Zener	I-TVS
Umsebenzi Oyinhloko	AC/DC ukuguqulwa	Ukulahlekelwa okuphansi okusheshayo ukushintsha	Amandla kagesi umthethonqubo	Surge isivikelo
Phambili Amandla kagesi	Phezulu	Phansi	Kuphakathi	Iyahlukahluka
Ukushintsha Isivinini	Kuphakathi	Ngokushesha kakhulu	Kuphakathi	Ngokwedlulele ngokushesha
Amandla Ukusebenza kahle	Kuphakathi	Phezulu	Kuphakathi	Kugxilwe ekuvikeleni
Reverse Ukusetshenziswa kokuhlukaniswa	Cha	Cha	Yebo	Yebo
Okuvamile Ukusetshenziswa Kwemboni	Amandla izimpahla	Amashaja, I-SMPS	Izinsimbi ze-voltage	Ezezimoto, I-USB

I-Schottky diodes zivame ukuthandwa kumasekhethi okushintsha amaza aphezulu ngenxa yokuthi i-voltage yawo eya phambili ephansi kanye nesikhathi sokutakula esiseduze neqanda kusiza ukwehlisa ukulahleka kwamandla nokukhiqiza ukushisa.Izici zabo zokushintsha ngokushesha zibuye zithuthukise ukusebenza kahle ezinhlelweni ze-electronic compact.

Kuziguquli ezihlangene ze-DC-DC, ama-Schottky diode ngokuvamile akhiqiza ukulahlekelwa kwamandla aphansi kune-diode yokulungisa izinto ezijwayelekile ngenxa yokuthi i-voltage yawo eya phambili ephansi inciphisa ukukhiqizwa kokushisa ngesikhathi sokushintshwa okuqhubekayo.

Ama-diode e-Zener zisetshenziswa ngokuyinhloko lapho ukulawulwa kwamandla kagesi okuzinzile kanye nokusebenza kokuhlehla okulawulwayo kuyadingeka. Ama-diode e-TVS, ngokuphambene, zenzelwe ukucindezelwa kwesikhashana kanye nokuvikelwa okusheshayo ngokumelene nokukhuphuka kwamandla kagesi kanye nemicimbi ye-ESD.

Ama-diode okulungisa ajwayelekile zilungele ukuguqulwa okujwayelekile kwe-AC-to-DC lapho ukusebenza kokushintsha okushesha kakhulu kungabalulekile kangako.

Uhlobo ngalunye lwe-diode lubandakanya ukuhwebelana okuthile kukagesi. Ngokwesibonelo, ama-Schottky diode ahlinzeka ngokushintsha okusheshayo kanye nokwehla kwamandla kagesi, kodwa angase futhi akhiqize ukuvuza okuphezulu okubuyela emuva emazingeni okushisa aphakeme uma kuqhathaniswa nezilungisa kabusha ze-silicon.

Ukuqonda lo mehluko wokusebenza kusiza ukuthuthukisa ukwethembeka kwesekethe, ukuzinza kwe-thermal, kanye nokusebenza kahle kwesistimu kagesi jikelele.

Ubukhulu bephakheji le-SMD Diode kanye nokusebenza okushisayo

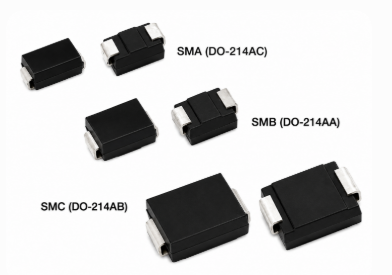

Umfanekiso 4. Osayizi Bephakheji Le-SMD Diode Abajwayelekile: I-SMA, i-SMB, ne-SMC

Usayizi wephakeji ye-surface-mount diode uthinta ngqo amandla okuphatha amanje, ukuchithwa okushisayo, ukwethembeka kwe-PCB, ukuqina kokushintsha, kanye nokuqina komshini kukonke.Ukukhetha iphakheji elilungile kubalulekile ngoba ukuphatha okushisayo okungalungile kunganciphisa ukusebenza kahle, kukhuphule izinga lokushisa lendawo ehlanganayo, futhi kufinyeze ubude besikhathi sokuphila kwengxenye.

Amaphakheji amancane e-diode avame ukusetshenziswa kuma-electronics aphansi ahlangene, kuyilapho amaphakheji amakhulu afaneleka kangcono izinhlelo zokusebenza zamanje nezinamandla aphezulu akhiqiza ukushisa okukhulu ngesikhathi sokusebenza.

Iphakheji	I-Max Yamanje	Ukusebenza Okushisayo	Ukusetshenziswa Okuvamile
I-SOD-523	Phansi Kakhulu	Inomkhawulo	Isiginali ukushintsha
I-SOD-323	Phansi	Kuphakathi	I-logic encane izifunda
I-SOD-123	Maphakathi	Okungcono	I-Zener/isilungisi
I-SMA	Okuphakathi-Phezulu	Kuhle	Amandla ukulungiswa
I-SMB	Phezulu	Iqinile	I-TVS isivikelo
I-SMC	Phezulu kakhulu	Kuhle kakhulu	Izimboni amandla

Amaphakheji amancane we-SMD njenge I-SOD-523 futhi I-SOD-323 zivame ukusetshenziswa kuma-compact signal-processing kanye namasekhethi anengqondo aphansi manje lapho isikhala se-PCB silinganiselwe.Kodwa-ke, amandla abo okushisa aphansi awenza angafaneleki kakhulu ezinhlelweni zamandla zamanje.

Amaphakheji amakhulu njenge I-SMA, I-SMB, futhi I-SMC hlinzeka ngokusebenza okushisayo okuqinile kanye nekhono lamanje lokubamba.Indawo yabo engaphezulu isiza ukusabalalisa ukushisa ngempumelelo futhi isekela ukusebenza okuzinzile ngaphansi kwezimo zikagesi ezidingekayo.

Ukusebenza okushisayo kuya ngokuya kubaluleke kakhulu kumasekhethi amanje aphezulu kanye nemvamisa ephezulu ngoba izinga lokushisa elidlulele le-junction linganciphisa ubude besikhathi se-diode, ukusebenza kahle kwamandla okuphansi, futhi kwandise ingozi yokuhluleka kwe-PCB.

Ezakhiweni ezihlangene ze-PCB, ukushisa okukhiqizwa ngaphakathi kwendawo yokuhlangana ye-diode kufanele kudluliselwe kahle ngezendlalelo zethusi ze-PCB.Uma ukushisa kungakwazi ukusabalala ngendlela efanele, izinga lokushisa lempambano lingase likhuphuke ngokushesha futhi lidale ukubaleka kwe-thermal, ukusebenza kahle okuncishisiwe, ukungazinzi kwamandla kagesi aya phambili, ukuguga kwe-semiconductor okusheshisiwe, kanye nokwehluleka kwengxenye ngaphambi kwesikhathi.

PCB indawo yethusi futhi kuthonya kakhulu ukuziphatha okushisayo. Izithako zethusi ezinkulu exhunywe kumaphedi e-diode isiza ukusabalalisa ukushisa endaweni yonke ye-PCB, inciphise izinga lokushisa lendawo yendawo, futhi isekele ukusebenza okuzinzile kwesikhathi eside.

Ezinhlelweni ze-elekthronikhi ezinamandla amakhulu, ukuzinza kwe-thermal kuvame ukusekelwa ngokusebenzisa imikhondo yethusi ebanzi, i-vias eshisayo, izindiza zethusi ezinezingqimba eziningi, amaphakheji amakhulu e-diode, nomklamo othuthukisiwe wokugeleza komoya ukuze kuncishiswe ukushisa nokugcina izinga lokushisa eliphephile lokusebenza.

Ukunciphisa ukushisa kungenye into ebalulekile lapho kukhethwa i-diode.Njengoba izinga lokushisa lokusebenza likhuphuka, amandla okuphatha amanje aphephile e-diode ayancipha.Lokhu kuziphatha okwehlisayo kufanele kucatshangelwe ukusiza ukuvimbela ukushisa ngokweqile ngaphansi kwezimo zangempela zokusebenza.

Ukukhetha iphakheji efanele kusiza ukuthuthukisa ukusebenza kahle kwamandla, ukuzinza kwe-thermal, ukuqina kwemishini, ukungaguquguquki kokukhiqiza, nokuthembeka kwesekethe yesikhathi eside.

Umfanekiso 5. Izindawo Zethusi Ezinkulu ze-PCB Zisiza Ukusabalalisa Ukushisa Nokunciphisa I-Diode Temperature

I-PCB Copper Area Ilithinta Kanjani I-Diode Temperature

Indawo yethusi ye-PCB inethonya elinamandla ekusebenzeni okushisayo kwe-SMD diode ngoba ungqimba lwethusi lusebenza njenge isisakazeli sokushisa edlulisa ukushisa kude ne-semiconductor junction.

Uma i-current igeleza ku-diode, ukuchithwa kwamandla kudala ukushisa ngaphakathi kwendawo yokuhlangana.Uma indawo yethusi ezungezile incane kakhulu, ukushisa kugxila eduze kwephakheji ye-diode futhi kukhulisa ngokushesha izinga lokushisa lokuhlangana.

Ukuthululwa kwethusi okukhudlwana kusiza ukunciphisa amazinga okushisa e-hotspot, ukuthuthukisa ukusabalala kokushisa, ukumelana nokushisa okuphansi,sukusekela ukuzinza kwesikhathi eside, futhi ukunciphisa ukucindezeleka okushisayo ngesikhathi sokusebenza okuqhubekayo.

Kuzilawuli zokushintshwa ezihlangene kanye namashaja asheshayo, indawo yethusi enganele ingase ibangele ama-Schottky diode amancane ukuthi ashise ngisho nalapho esebenza ngaphakathi kwemikhawulo yawo yamanje elinganiselwe.

Ukudlulisa okushisayo kuvame ukuthuthukiswa ngokwandisa usayizi wephedi yethusi, ukuxhuma amaphedi ezindizeni zethusi zangaphakathi, kusetshenziswa izendlalelo zethusi ezishubile, kanye nokwengeza izimbobo zokuthunga ezishisayo.

Ukuhlaziywa kwesithombe esishisayo ngokuvamile kuveza ukuthi ukusabalalisa kwethusi okubi kudala izindawo ezishisayo zasendaweni eduze kwama-diode wamandla kanye nezingxenye ezishintshayo.

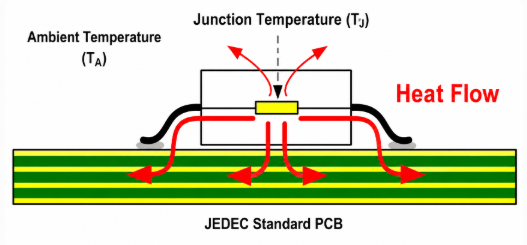

Umfanekiso 6. Ukugeleza Kokushisa kusuka ku-Diode Junction kuya ku-PCB ngesikhathi Sokushabalaliswa Kwe-Thermal

Ukuqonda Ukuphikiswa Kwe-Thermal (RθJA)

Ukumelana nokushisa, okuvame ukuvezwa njenge I-RθJA (ukumelana nokushisa kwe-junction-to-ambient), ikala ukuthi ukushisa kudlulisa ngempumelelo kangakanani ukusuka ku-semiconductor junction kuya emoyeni ozungezile.

Amanani aphansi e-RθJA abonisa amandla angcono okupholisa kanye nokudlulisa ukushisa okuphumelelayo.

Ubudlelwano phakathi kokuchithwa kwamandla nokukhuphuka kwezinga lokushisa bungalinganiselwa kusetshenziswa:

T_J=T_A+(P_D×R_θJA)

Kuphi:

• TJ = Izinga lokushisa lokuhlangana

• TA = Izinga lokushisa le-ambient

• PD = Ukuchithwa kwamandla

• I-RθJA = I-Junction-to-ambient ukumelana nokushisa

Lobu budlelwano bubaluleke kakhulu kuma-electronics wamandla ngoba izinga lokushisa elidlulele le-junction lingase likhulise ukuvuza kwamanje, linciphise ukusebenza kahle, lisheshise ukuguga kwe-semiconductor, kubangele ukubaleka okushisayo, futhi kubangele ukwehluleka kwe-diode unomphela.

Ngokwesibonelo, i-Schottky diode iyahlakazeka 1W kwamandla anenani le-RθJA elithi 80°C/W angase abe ne 80°C izinga lokushisa lokuhlangana likhuphuka ngaphezu kwezinga lokushisa elizungezile.Uma izinga lokushisa lomoya elizungezile likhona 40°C, izinga lokushisa lokuhlangana lingasondela 120°C, okungakwandisa kakhulu ukucindezeleka okushisayo futhi kunciphise ukwethembeka kwesikhathi eside.

Kumiklamo ye-PCB esebenzayo, i-compact SOD-323 Schottky diode esebenza kuyo 1A okwamanje ingase ikhiphe amandla anele ukuze ikhuphule izinga lokushisa lenhlukanandlela ngaphezulu 100°C uma indawo yethusi ye-PCB ilinganiselwe.Ukuhlola okushisayo kuvame ukubonisa ukuthi ukwandisa usayizi wokuthululwa kwekhopha kanye nokwengeza ama-vias ashisayo kunganciphisa ngokuphawulekayo izinga lokushisa le-hotspot futhi kusekele ukusebenza okuzinzile kwesikhathi eside.

Amanani e-RθJA ngokuvamile afakwa ohlwini lwemininingwane yedatha ye-surface-mount diode futhi asize ukulinganisa izinga lokushisa eliphephile lokusebenza ngaphansi kwezimo zangempela ze-PCB.Amanani aphansi okumelana nokushisa ngokuvamile abonisa amandla okupholisa anamandla kanye nokudlulisa ukushisa okuphumelelayo endaweni ezungezile.

Amaphakheji amancane e-SMD ngokuvamile anokumelana nokushisa okuphezulu ngoba indawo yawo encishisiwe ikhawulela ukudluliswa kokushisa ku-PCB nomoya ozungezile.

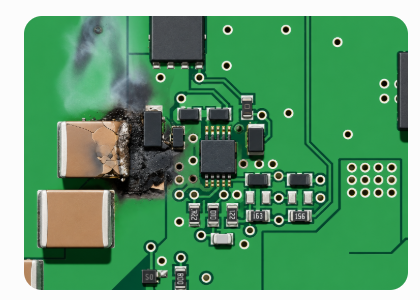

Umfanekiso 7. Ukulimala Okushisayo okubangelwa Ukushisa Okubi Okubi Kumaphakheji E-Compact SMD

Kungani Amaphakheji Amancane e-SMD Ashisa Ngokushesha

Amaphakheji amancane e-SMD avame ukushisa ngokushesha ngoba anakho isisindo esishisayo esilinganiselwe, indawo encane yokukhipha ukushisa, ukumelana nokushisa okuphezulu, futhi indawo yokuxhumana yethusi encishisiwe.

Ngokwesibonelo , amaphakheji e-SOD-523 kanye ne-SOD-323 mahle kakhulu ekusetshenzisweni kwesignali ehlangene, kodwa angase azabalaze kumasekhethi ashintshashintshayo amanje lapho ukushabalaliswa kwamandla okuqhubekayo kukhiqiza ukushisa okukhulu.

Njengoba izinga lokushisa likhuphuka, ukuvuza kwamanje kuyanda, izici ze-voltage eya phambili ziyashintsha, ukusebenza kahle kuyehla, kanye nokuwohloka kwe-semiconductor kuyashesha.

Kumishini kagesi ehlangene njenge ama-smartphone futhi Amashaja e-USB-C, kugcwele phama Izakhiwo ze-PCB ingabamba ukushisa futhi yenze kube kubi ukwakheka okushisayo okuzungeze amaphakheji amancane e-diode.Ukugeleza komoya okungekuhle kuqhubeza nokwandisa ingcindezi yokushisa ngenxa yokuthi ukugeleza kwemvelo kuba nomkhawulo ngaphakathi kwezindawo ezivalekile ezihlangene.

Izingozi zokushisa ngokweqile zivame ukuncishiswa ngokukhetha amaphakheji amakhulu e-diode, ukuthuthukisa ukugeleza komoya kwe-PCB, ukwandisa indawo yendiza yethusi, ukwehlisa ukusebenza kwamanje, nokusebenzisa ama-Schottky diode asebenza kahle kakhulu.

Ipharamitha	Incazelo	Ukubaluleka
Reverse I-Voltage (Vr)	Ubuningi i-voltage ehlehlayo	Ivimbela ukwehlukana
Phambili Amandla kagesi (Vf)	Ukwehla kwe-voltage ngesikhathi sokuqhuba	Kuyathinta ukusebenza kahle nokukhiqiza ukushisa
Ukuvuza Okwamanje (IR)	Reverse ukuvuza kwamanje	Okubalulekile ku izifunda zamandla aphansi
Isikhathi Sokubuyisela (trr)	Ukushintsha isivinini sokutakula	Okubalulekile ku ukusebenza kwe-high-frequency
Ukuhlangana Amandla (Cj)	Imali egciniwe phakathi kwamatheminali	Ithinta i-RF kanye nokushintsha ukusebenza
Ubuningi I-Junction Temperature (Tj)	Ukuphepha okuphezulu kakhulu izinga lokushisa lokusebenza	Ivimbela umonakalo oshisayo

Amaphakheji amakhulu e-diode ngokuvamile anikeza ukumelana nokushisa okuphansi kanye nekhono elingcono lokulahla ukushisa.Nakuba amaphakheji amancane esiza ukunciphisa usayizi we-PCB, ngokuvamile adinga ukuphathwa okushisayo okucophelelayo ngaphansi komthwalo wamanje oqhubekayo.

Nakuba amaphakheji amancane e-surface-mount diode esiza ukunciphisa ukusetshenziswa kwesikhala se-PCB, ngokuvamile adinga idizayini yokushisa ecophelelayo ngoba indawo yawo encishisiwe ikhawulela amandla okukhipha ukushisa ngaphansi komthwalo wamanje oqhubekayo.

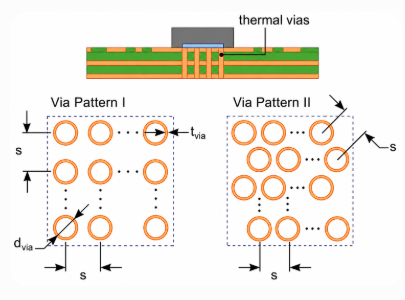

Umfanekiso 8. Thermal Via Patterns usetshenziselwe Ukuthuthukisa Ukushabalaliswa Kokushisa kwe-PCB kanye nokusebenza kahle kokupholisa

I-Thermal Vias kanye ne-Multi-Layer PCB Ukupholisa

Thermal vias izimbobo plated ezidlulisa ukushisa kusukela phezulu PCB ungqimba kuya izindiza zethusi zangaphakathi noma phansi.Zisiza ukusabalalisa ukushisa kuzo zonke izendlalelo ze-PCB esikhundleni sokugxilisa ukushisa eduze kwephakheji ye-diode.

I-Thermal vias isiza ukwehlisa izinga lokushisa lokuhlangana, isekele ukusakazeka kokushisa, inciphise ukwakheka kwe-hotspot, futhi ithuthukise ukwethembeka kwesikhathi eside.

Izindiza zekhopha ezinezingqimba eziningi ze-PCB ziqhubeka nokusekela ukunqanyulwa kokushisa ngenxa yokuthi izindawo ezinkulu zethusi zangaphakathi zisebenza njengamachibi ashisayo abamba futhi asabalalise ukushisa ngendlela ephumelelayo.Lokhu kubaluleka ikakhulukazi kuma-elekthronikhi ahlangene wamandla aphezulu lapho ukugeleza komoya kunomkhawulo.

Umfanekiso 9. Ukugeleza komoya Kuthuthukisa Ukupholisa Kwe-SMD Diode

Ukugeleza komoya Okufanelekile Kuthuthukisa Ukupholisa Nokwethembeka kwe-SMD Diode

Ukugeleza komoya kuthinta kakhulu izinga lokushisa lokusebenza kwe-diode, ikakhulukazi ezinhlelweni zokusebenza zamandla aphezulu.Izimo zokugeleza komoya ezimbi zingabamba ukushisa eduze nendawo ye-PCB futhi zikhuphule izinga lokushisa lokuhlangana, ukuvuza kwamanje, ingcindezi yokushisa, namathuba okwehluleka.

Ukugeleza komoya okuphoqelekile okuvela kumafeni okupholisa kusiza ukususa ukushisa kahle kakhudlwana futhi kwehlisa izinga lokushisa lokusebenza kumasistimu kagesi anamandla amakhulu lapho kudingeka khona ukuchithwa kokushisa okuqhubekayo.

Ngisho nokuthuthukiswa kokugeleza komoya okumaphakathi kungase kwehlise kakhulu izinga lokushisa lokuhlangana kwe-diode futhi kusekele ukuzinza kokusebenza kwesikhathi eside.

I-Thermal Derating Kumiklamo Yamanje Ephezulu

Ukuncipha kokushisa kubhekisela ekwehliseni amandla okuphatha amanje avumelekile e-diode njengoba izinga lokushisa lokusebenza likhuphuka.

Iningi lemininingwane yedatha ye-diode icacisa izilinganiso zamanje ngaphansi kwezimo zaselabhorethri ezilawulwayo, ngokuvamile ezizungeze izinga lokushisa le-ambient elingu-25°C.Ezinhlelweni zangempela ze-elekthronikhi, amazinga okushisa okusebenza avame ukuba phezulu kakhulu.

Njengoba izinga lokushisa le-junction likhuphuka, amandla okusebenza aphephile ayancipha, ukuvuza kwamanje kukhuphuka, ukuchithwa kwamandla kuyenyuka, kanye nengozi yokubaleka okushisayo iba phezulu.

Amamajini okwehlisa izinga lokushisa ngokuvamile asetshenziswa ukuze kusekelwe ukwethembeka ngaphansi kwezimo zokusebenza ezimbi kakhulu, ikakhulukazi kumasistimu kagesi anamandla aphezulu kanye namaza aphezulu lapho ukukhiqizwa kokushisa kuqhubeka.

Ukuziba ukuncishiswa kokushisa kungase kubangele ukwehluleka kwengxenye ngaphambi kwesikhathi, ukuziphatha kwesekhethi okungazinzile, ukushisisa ngokweqile, kanye nokunciphisa ubude besikhathi sokuphila komkhiqizo.

Idizayini efanele yokushisa isiza ukuqinisekisa ukuthi ama-SMD diode angasebenza ngokuphephile ngaphansi kwezimo zengcindezi kagesi nezemvelo eziqhubekayo phakathi nesikhathi eside sesevisi.

Izinkinga zangempela ze-PCB ezishisayo kuzicelo ze-SMD Diode

Izinkinga zokuphatha okushisayo ziphakathi kwezinselelo ezivame kakhulu zokuthembeka ezinhlelweni zesimanjemanje ze-SMD diode.Ngenxa yokuthi amaphakheji e-SMD ahlangene futhi aminyene kuma-PCB, ukwakheka kokushisa okweqile kungathinta ngokushesha ukusebenza kukagesi nokuzinza kwesekethe yesikhathi eside.

Inkinga eyodwa evamile esebenzayo yenzeka kuma-electronics aphathwayo asebenzisa i-compact SOD-323 Schottky diode yokuphatha amandla kanye nokuvikela ukuhlehla kwe-polarity.

Inkinga Yeqiniso Ye-PCB Eshisayo: I-SOD-323 Overheating

Kumasekhethi ahambisanayo aphezulu, ama-SOD-323 Schottky diode angase ashise kakhulu lapho indawo yethusi ye-PCB incane kakhulu, ukugeleza komoya kukhawulelwe, ukushintsha kwamandla kudlula imikhawulo yokusebenza ephephile, i-thermal vias awekho, noma ububanzi bokulandelela be-PCB abanele.

Njengoba izinga lokushisa le-junction likhuphuka, i-diode ingase ibhekane nokusebenza kahle okuncishisiwe, ukuvuza kwamanje, ukugijima kwe-thermal, ukungazinzi kwe-voltage, kanye nokuwohloka kwe-semiconductor ngaphambi kwesikhathi.

Izimpawu ezibonakalayo ngokuvamile zihlanganisa ukushintsha kombala kwe-PCB, amamaki ashisayo eduze kwe-diode, ukuziphatha kokushaja okungazinzile, ukusebenza kahle kokuguqulwa kwamandla okuncishisiwe, kanye nokusebenza kwesekethe ngezikhathi ezithile.

Kumashaja ahlangene e-USB-C kanye neziguquli ze-DC-DC, ukushisa ngokweqile kwe-Schottky diode kunganciphisa kakhulu ukusebenza kahle kokushaja futhi kufinyeze ukuphila kwezingxenye eziseduze ngenxa yokucindezeleka okushisayo okwenziwe kwasendaweni.

Kudizayini eyodwa ehlangene yeshaja ye-USB-C, i-SOD-323 Schottky diode encane yashisa kakhulu ngesikhathi sokushaja okusheshayo okuqhubekayo ngoba indawo ezungezile yethusi ye-PCB yayincane kakhulu ukuthi ingasakazwa ukushisa okufanele.Ukuthwebula okushisayo kwembula amazinga okushisa e-hotspot enziwe sendaweni eduze kwephakheji ye-diode, okubangele ukusebenza kokushaja okungazinzile ngemva kokusebenza okunwetshiwe.Ukushintsha i-diode ngephakeji ye-SMA enkudlwana kanye nokwengeza i-thermal vias kusize ukwehlisa izinga lokushisa lokusebenza nokuthuthukisa ukwethembeka kwesikhathi eside.

Lolu hlobo lwenkinga yokushisa ngokweqile lubonisa indlela ikhwalithi yesakhiwo se-PCB ekuthinta ngayo ngokuqondile ukuzinza kwe-thermal kanye nempilo ye-semiconductor kumasistimu kagesi anamandla amakhulu.

Isixazululo esisebenzayo se-PCB Thermal

Ukwandisa indawo yokuthululela ithusi ezungeze amaphedi e-diode kusiza ukuthuthukisa ukuchithwa okushisayo ngokusabalalisa ukushisa endaweni enkulu ye-PCB.Ukuthembeka kokushisa nakho kuvame ukusekelwa ngokusebenzisa imikhondo yethusi ebanzi, izindiza zethusi ezinezingqimba eziningi, i-thermal vias, idizayini yokugeleza komoya ethuthukisiwe, namaphakheji amakhulu e-diode emithwalweni ephezulu yamanje.

Kumiklamo esebenzayo ye-PCB, ukuphathwa okushisayo kwe-thermal kungadala amazinga okushisa e-hotspot asendaweni asheshisa ukuguga kwe-semiconductor futhi akhuphule amazinga okuhluleka kwesikhathi eside.Idizayini efanele yesakhiwo esishisayo isiza ukugcina ukusebenza okuzinzile, ikakhulukazi kumasistimu kagesi ahlangene lapho ukugeleza komoya nendawo yokupholisa kukhawulelwe.

Ukuhlaziywa kwesithombe esishisayo kuvame ukusetshenziswa phakathi nokuthuthukiswa kwe-PCB ukuhlonza izingxenye ezishisisa ngokweqile kanye nokwandisa ukusatshalaliswa kokushisa ngaphambi kokukhiqiza ngobuningi.

Izinhlelo zesimanje ze-elekthronikhi zithembele kakhulu ekwakhiweni kokushisa okucophelelayo ngoba ngisho nokukhuphuka okuncane kwezinga lokushisa kungathinta kakhulu ukwethembeka kwesikhathi eside nokuzinza kukagesi.

Amapharamitha Abalulekile Kagesi Wokukhetha I-SMD Diode

Ukukhetha i-SMD diode efanele kudinga ukuhlolwa ngokucophelela kwemingcele embalwa ebalulekile kagesi ethinta ngokuqondile ukusebenza kahle, ukuzinza okushisayo, ukusebenza kokushintsha, nokuthembeka kwesifunda eside.

Izinhlobo ezahlukene ze-diode zilungiselelwe izimo zokusebenza ezihlukene.Ezinye zenzelwe ukushintsha ngesivinini esikhulu, kanti ezinye zibeka phambili ukuvikelwa kokuhlinzwa, ukulawulwa kwamandla kagesi, noma amandla okubamba amanje.Ukuqonda la mapharamitha kagesi kusiza ukunquma i-diode efaneleka kakhulu yohlelo oluthile.

Ipharamitha	Incazelo	Ukubaluleka
Reverse I-Voltage (Vr)	Ubuningi i-voltage ehlehlayo	Ivimbela ukwehlukana
Phambili Amandla kagesi (Vf)	Ukwehla kwe-voltage ngesikhathi sokuqhuba	Kuyathinta ukusebenza kahle nokukhiqiza ukushisa
Ukuvuza Okwamanje (IR)	Reverse ukuvuza kwamanje	Okubalulekile ku izifunda zamandla aphansi
Isikhathi Sokubuyisela (trr)	Ukushintsha isivinini sokutakula	Okubalulekile ku ukusebenza kwe-high-frequency
Ukuhlangana Amandla (Cj)	Imali egciniwe phakathi kwamatheminali	Ithinta i-RF kanye nokushintsha ukusebenza
Ubuningi I-Junction Temperature (Tj)	Ukuphepha okuphezulu kakhulu izinga lokushisa lokusebenza	Ivimbela umonakalo oshisayo

Ukukhetha amapharamitha kagesi angalungile kungase kubangele ukushisa ngokweqile, ukusebenza okungazinzile, ukulahlekelwa amandla amaningi, ukusebenza kahle okuncishisiwe, ukubaleka kokushisa, nokwehluleka kwengxenye ngaphambi kwesikhathi.Ukukhetha okufanele kwepharamitha kusiza ukusekela ukwethembeka kwesekethe, ukuzinza kokushisa, ukusebenza kahle kwamandla, nokusebenza kwe-elekthronikhi kwesikhathi eside.

I-Forward Voltage (Vf)

I-voltage eya phambili inquma ukuthi ingakanani i-voltage elahlekile lapho i-current igeleza ku-diode ngesikhathi sokusebenza kokubheka phambili.

Uhlobo lwe-Diode	I-Voltage Forward Forward ejwayelekile
Schottky I-Diode	0.2V–0.4V
I-silicon I-Rectifier Diode	0.7V–1.1V

I-voltage eya phambili ephansi ithuthukisa ngqo ukusebenza kahle kwamandla ngoba amandla kagesi amancane aguqulwa abe ukushisa ngesikhathi sokuqhutshwa.Lokhu kubaluleka ikakhulukazi kuma-compact electronics lapho indawo yokuphatha okushisayo inomkhawulo.

Ama-Schottky diode avame ukukhethwa kumasekhethi amandla asebenza kahle kakhulu ngenxa yokwehla kwawo kagesi kanye nokuziphatha kokushintsha ngokushesha.Izilungisi ezijwayelekile ze-silicon, nokho, zinganikeza ukubekezelelana okungcono kwe-voltage ehlehlayo kanye nokuvuza okuphansi kwamanje kwezinye izinhlelo zokusebenza.

I-voltage eya phambili ephansi iphinde isize ukwehlisa ingcindezi yokushisa, ithuthukise ukusebenza kahle, izinga lokushisa eliphansi le-junction, futhi andise isikhathi sokuphila sengxenye.

Ubudlelwano bokuchithwa kwamandla:

P=V_f×I

Ngisho nokwehliswa okuncane ku-voltage eya phambili kunganciphisa kakhulu ukulahleka kwamandla kumasistimu kagesi amanje kakhulu.

I-Reverse Voltage (Vr)

Isilinganiso se-voltage ehlehlayo sichaza i-voltage ehlehlayo ephezulu idiode engamelana nayo ngokuphepha ngaphambi kokuphuka kukagesi.Uma i-voltage ebuyela emuva esetshenzisiwe idlula umkhawulo olinganiselwe, i-diode ingase ihlangabezane nokuwohloka kwe-avalanche, ukuvuza okudlulele kwamanje, umonakalo ongunaphakade we-semiconductor, kanye nokwehluleka kwe-PCB phakathi nokwenyuka kwamandla kagesi.

Izilinganiso zamandla kagesi ahlehlayo zivame ukukhethwa ngemajini eyengeziwe yokuphepha ukusiza ukugcina ukwethembeka phakathi nezimo zokusebenza zesikhashana.Imajini kagesi ehlehlayo enganele yandisa ingozi yezinkinga zokwethenjelwa zesikhathi eside kanye nokwehluleka kwenkambu okungalindelekile.

Ukuvuza kwamanje (IR)

Ukuvuza kwamanje kubhekisela enanini elincane lamanje elibuyela emuva eligeleza ku-diode uma kuchemile okuhlanekezelwe.Nakuba ukuvuza kwamanje kuncane kakhulu, ukuvuza okudlulele kungase kunciphise ukuphila kwebhethri, ukusebenza kahle okulindile okuphansi, kukhuphule ingcindezi yokushisa, futhi kuthinte ukunemba kwamasekhethi amandla aphansi.

Ukuvuza kwamanje kuyanda njengoba izinga lokushisa likhuphuka, i-voltage ehlehlayo ikhuphuka, futhi ukuguga kwe-semiconductor kwenzeka.Ukusebenza kokuvuza okuphansi kubaluleke kakhulu kuma-elekthronikhi aphathwayo, amasistimu anamandla ebhethri, amadivayisi e-IoT, namasekhethi okulinda awonga amandla.

I-Schottky diode ngokuvamile inokuvuza okuphezulu kwamanje kune-silicon rectifiers evamile, ikakhulukazi emazingeni okushisa aphakeme okusebenza.

Ngokwesibonelo, ama-Schottky diode ngokuvamile ahlinzeka ngokusebenza kahle kakhulu kumashaja asheshayo ngenxa ye-voltage yawo eya phambili ephansi.Kodwa-ke, ukuvuza kwawo okuphezulu kumazinga okushisa aphakeme kungase kunciphise kancane ukusebenza kokulinda kumasistimu asebenza ngebhethri.

Lokhu kuhwebelana kubaluleka kumiklamo ye-elekthronikhi enamandla aphansi lapho impilo yebhethri ende kanye nokusetshenziswa kwamandla okulindile okuncane kubaluleke kakhulu.

Isikhathi Sokubuyisela (trr)

Isikhathi sokutakula sikala ukuthi i-diode ima ngokushesha kangakanani ukuqhuba lapho isuka ekuchemayo eya phambili ihlehlise ukuchema.

Uhlobo lwe-Diode	Isikhathi Esijwayelekile Sokubuyisela
Okujwayelekile Isilungisi	2µs–30µs
Ukubuyisela Ngokushesha I-Diode	50ns-500ns
Schottky I-Diode	Eduze kweziro

Isikhathi sokuthola kabusha siya ngokuya sibaluleke kakhulu njengoba imvamisa yokushintsha ikhula.Ama-diode ajwayelekile okulungisa ngokuvamile ayamukeleka kumandla aphansi, kodwa angase adale ukulahlekelwa kokushintsha okudlulele kumasekhethi anemvamisa ephezulu.

Eziphakelini zamandla okushintsha imvamisa ephezulu, ama-diode alungisa kancane angase akhiqize ukulahlekelwa kokushintsha okwengeziwe ngenxa yokuthi ukubuyisela okubuyiselwe emuva kuyaqhubeka nokugeleza isikhashana phakathi nokushintsha izinguquko.Ukululama ngokushesha nama-Schottky diode kusiza ukunciphisa lokhu kulahlekelwa, ukukhiqiza ukushisa okuphansi, futhi kuthuthukise ukusebenza kahle kwesiguquli sekukonke.

Ukululama ngokushesha kanye nama-Schottky diode avame ukuthandwa ekushintsheni izinto zikagesi, amashaja asheshayo, iziguquli ze-DC-DC, amasekhethi kagesi e-RF, nezinhlelo zezimboni ezisebenza ngamaza aphezulu.

Ukushintsha kwabo ngokushesha kusiza ukunciphisa ukulahlekelwa kokushintsha, ukukhiqiza ukushisa okuphansi, ukuthuthukisa ukusebenza kahle, ukunciphisa umsindo we-EMI, futhi kusekele ukuzinza okungcono kokushisa.

Kodwa-ke, ama-Schottky diode angase abonise ukuvuza okuphezulu okubuyela emuva emazingeni okushisa aphakeme, okumele kubhekwe ezindaweni ezidinga ukushisa.

I-Junction Capacitance (Cj)

I-Junction capacitance imele ukushajwa kukagesi okugciniwe phakathi kwamatheminali e-diode.Le pharamitha ithinta ngokuqondile isivinini sokushintsha, ukusebenza kwe-RF, ubuqotho besignali, kanye nokuziphatha kwesekethe yefrikhwensi ephezulu.

Amandla okuhlangana okuphansi asiza ukuthuthukisa ukushintshwa kwemvamisa ephezulu, ukuzinza kwesignali ye-RF, ukusebenza kwesekethe yokuxhumana, nokunemba kokucubungula isignali.

Umthamo we-Junction ubaluleka ikakhulukazi ezinhlelweni zokuxhumana ze-RF, izinto zikagesi ezingenantambo, amasekhethi okucubungula amasignali, namasistimu edijithali anesivinini esikhulu.Umthamo oweqile ungase wethule ukuhlanekezela kwesignali, ukuziphatha okunensayo kokushintsha, nokunciphisa ukusebenza kahle kwe-RF.

I-Maximum Junction Temperature (Tj)

Izinga lokushisa eliphezulu le-junction, elivame ukubhalwa njenge-Tj, lichaza izinga lokushisa eliphakeme kakhulu eliphephile lokuhlangana kwe-semiconductor yangaphakathi ye-diode.

Le pharamitha ibaluleke kakhulu ngoba i-diode ingase yehluleke ngisho nalapho izilinganiso ze-voltage nezamanje zibonakala zamukelekile uma ukuphathwa kwezinga lokushisa kunganele.

Njengoba izinga lokushisa le-junction likhuphuka, i-diode ingase ibhekane nokukhuphuka kokuvuza kwamanje, ukusebenza kahle okuncishisiwe, ukungazinzi kwamandla kagesi oya phambili, ukuguga okusheshisiwe kwe-semiconductor, nokulimala kwangaphakathi unomphela.

Kuzinhlelo zokusebenza zamanje ze-SMD diode, izinga lokushisa elidlulele le-junction lingase libangele ukubaleka okushisayo.Lokhu kwenzeka lapho izinga lokushisa elikhuphukayo linyusa ukuvuza kwamanje kanye nokuhlakazeka kwamandla, okube sekukhiqiza ukushisa okwengeziwe futhi kunyuse izinga lokushisa lendawo.

Uma ukugijima okushisayo kungalawulwa, i-diode ingase ingaphumeleli ngokuzumayo futhi ilimaze izingxenye ezizungezile ze-PCB.

Ukusebenza ngokuqhubekayo eduze kwezinga lokushisa eliphezulu lendawo ehlanganayo kungase futhi kufinyeze ubude besikhathi sokuphila bengxenye, noma ngabe kungenzeki ukwehluleka ngokushesha.Izinga lokushisa eliphakanyisiwe lisheshisa izindlela zokugqoka ze-semiconductor futhi linciphisa ukuthembeka kwesikhathi eside.

Ukuthembeka kokushisa kuvame ukuthuthukiswa ngokusebenzisa amaphakheji amakhulu e-diode, imikhondo yethusi ebanzi, ukuthululwa kwethusi okukhulu kwe-PCB, i-thermal vias, ukugeleza komoya okungcono, nezindlela zamanje zokwehlisa.

Ukuphatha okushisayo okufanelekile kusiza ukugcina izinga lokushisa eliphephile lendawo ehlanganayo, kuthuthukiswe ukwethembeka kwesikhathi eside, futhi kunciphise ubungozi bokwehluleka kwengxenye ngaphambi kwesikhathi kumasistimu esimanje kagesi.

Ngokwesibonelo, idatha yedatha ye-diode ingase icacise izinga lokushisa eliphezulu le-junction elingu-150°C kanye nenani le-RθJA elingu-90°C/W.Lawa manani asiza ukulinganisa ukuthi i-diode ingasebenza ngokuphephile yini ngaphansi kwezimo ezilindelekile zezinga lokushisa le-ambient nezimo zokuchithwa kwamandla.

Ungawabona Kanjani Amakhodi we-SMD Diode kanye ne-Polarity

Umfanekiso 10. SMD Diode Cathode Polarity Marking

Omunye wemibuzo yosesho evame kakhulu ehlobene nama-diode e-SMD ngu Ungazihlonza kanjani izimpawu ze-SMD diode ngoba abakhiqizi bavame ukuphrinta amakhodi e-SMD afushanisiwe kumaphakheji e-diode ngenxa yosayizi wengxenye elinganiselwe.

Ikhodi	Kungenzeka Uhlobo lwe-Diode
A7	Ukushintsha i-diode
M7	Rectifier diode
T4	I-TVS diode

Ngenxa yokuthi amasistimu wokumaka ayahluka phakathi kwabakhiqizi, ukuhlonza ingxenye ngokuvamile kuqinisekiswa kusetshenziswa amashidi edatha, isizindalwazi sekhodi ye-SMD, nokuhlolwa kwe-multimeter diode.

Indlela Yokuhlola i-SMD Diode usebenzisa i-Multimeter

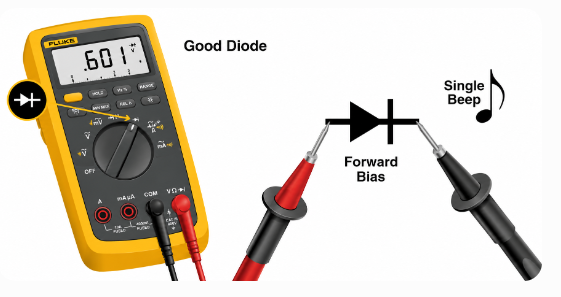

Umfanekiso 11. Ihlola i-SMD Diode nge-Multimeter

Ukuhlola i-SMD diode nge-a i-multimeter isiza ukukhomba izinkinga ezivamile ezifana namasekhethi amafushane, amasekhethi avulekile, ukulimala kokuvuza, nokwehluleka kokushisa.Izinqubo zokuhlola ezifanele zibalulekile ngoba izilinganiso ezingalungile zingase ziholele ekuxilongweni okunganembile noma ekulimaleni kwe-PCB ngephutha.

Izinyathelo Zokuphepha Ngaphambi Kokuhlolwa

Ngaphambi kokwenza noma yiziphi izilinganiso ze-diode:

1. Nqamula futhi uhlukanise amandla kusuka kusekethi

2. Khipha ama-capacitor ngokuphelele ngaphambi kokuthinta i-PCB

3. Gwema ukuhlola amasekhethi anikwe amandla

4. Sebenzisa ukuvikela kwe-ESD lapho uphatha izinto zikagesi ezibucayi

Ama-capacitor amakhulu ngaphakathi kwezinto zikagesi, amashaja, nezinto zikagesi zasembonini zingagcina amandla kagesi ayingozi ngisho nangemva kokukhishwa kwamandla.Ukukhipha ama-capacitor kusiza ukunciphisa ingozi yokushaqeka kukagesi kanye nokulimala kwengxenye yengozi.

Izilinganiso ze-in-circuit nazo azithembeki ngokugcwele ngoba izingxenye ezizungezile ze-PCB zingase zidale ukufundwa okungamanga.Ama-Parallel resistors, ama-capacitor, ama-inductors, kanye nezindlela ze-semiconductor zingathinta izilinganiso ze-multimeter futhi zikhiqize imiphumela edukisayo.

Ukuze uthole ukuxazulula inkinga okunembe kakhudlwana, uhlangothi olulodwa lwe-diode luvamise ukususwa ku-PCB ukuze luhlukanise ingxenye phakathi nokuhlolwa.

Dlulisela Ukuhlolwa Kwecala

Setha i-multimeter kumodi yokuhlola ye-diode.Xhuma i-probe ebomvu ku-anode kanye ne-black probe ku-cathode.I-diode enempilo ngokuvamile ibonisa ukwehla kwamandla kagesi aya phambili cishe okungu-0.2V–0.4V kuma-Schottky diode kanye no-0.6V–0.7V kuma-silicon diode.Lokhu kufundwa kubonisa ukwehla kwe-voltage ye-diode phambili ngesikhathi sokuqhuba.I-voltage eya phambili ephansi kuma-Schottky diode isiza ukuthuthukisa ukusebenza kahle futhi inciphise ukukhiqizwa kokushisa kumasekhethi okushintsha amaza aphezulu.

Reverse Bias Test

Hlehlisa ama-multimeter probe ngokuxhuma i-probe emnyama ku-anode kanye ne-red probe ku-cathode.I-diode enempilo kufanele ivimbele ukugeleza kwamanje okubuyela emuva.I-multimeter ivamise ukubonisa i-OL (Open Loop) noma ukumelana okuphezulu kakhulu.Uma umthamo wamanje olinganisekayo ugeleza ngokuchema okuhlanekezelwe, i-diode ingase ihlupheke ngenxa yokulimala kokuvuza, ukuphuka kwe-junction, noma ukuwohloka kokushisa.Izinkinga zokuvuza ezihlehlayo ngokuvamile ziba zimbi kakhulu emazingeni okushisa aphakeme okusebenza.

Izinkomba Zokwehluleka Okujwayelekile

Uphawu	Imbangela Engenzeka
0v kokubili izikhombisi-ndlela	I-diode efushane
OL kokubili izikhombisi-ndlela	Vula i-diode
Ayizinzile ukufundwa	Okushisayo umonakalo noma ukuvuza

Ama-diode amafushane ngokuvamile ukwenzeka ngemva kokucindezelwa kukagesi, izehlakalo zokuhlehla kwe-polarity, ukushisa ngokweqile, noma ukulimala kokuhlinzwa.Vula i-diode ukwehluleka kungase kubangelwe ekulimaleni kwentambo yebhondi, ukuhamba ngebhayisikili okushisayo ngokweqile, ukuqhekeka kwemishini, noma amaphutha okukhiqiza.Ayizinzile noma okungaguquki ukufundwa kungase kubonise ukulimala kwangaphakathi okushisayo, izinkinga zamanje zokuvuza, amalunga aqhekekile e-solder, noma ukuwohloka kwengxenye ye-semiconductor.

Kumasekhethi ashintshashintshayo ama-high-frequency switching and power supply, ama-SMD diode anephutha angase futhi abangele ukukhiqizwa kokushisa okudlulele, i-voltage ephumayo engazinzile, umsindo oshintshayo, ukusebenza kahle kokushaja okuncishisiwe, nokusebenza kwesekethe ngezikhawu.

Ukuhlolwa okufanele kwe-multimeter kusiza ukukhomba ngokushesha ama-diode anephutha futhi kusekele ukuxazululwa kwezinkinga okunembe kakhudlwana kumasistimu esimanje kagesi.

Ukwehluleka Okujwayelekile kwe-SMD Diode, Amaphutha Wokuklama we-PCB, kanye namazinga okuthembeka

Nakuba ama-SMD diode ethembeke kakhulu, idizayini yesekethe engafanele, ukucindezeleka okushisayo, ukucindezela kukagesi, ukuchayeka kwe-ESD, kanye nemikhuba engemihle yokunamathisela isengadala ukwehluleka ngaphambi kwesikhathi kanye nezinkinga zokwethenjelwa zesikhathi eside.

Ukuqonda izindlela zokwehluleka ezivamile kusiza ukuthuthukisa ukwethembeka kwe-PCB futhi kwehlise izinga lokuhluleka kwensimu kumasistimu ezimoto, ezimbonini, ezokuxhumana, nasezinhlelweni zikagesi.

Ukwehluleka Okujwayelekile kwe-SMD Diode kanye nokuxazulula izinkinga

Ukwehluleka Imbangela	Uphawu Oluvamile	Cishe Umphumela
Ezogesi ukucindezeleka ngokweqile	Ukushisa ngokweqile	Ngokweqile umonakalo wamanje
Ngokweqile ukushisa	Shisa amabala	Okushisayo abalekile
Ukuchayeka kwe-ESD	Ukuhlinzwa okulahlekile isivikelo	I-TVS diode ukucekelwa phansi
I-PCB flex umonakalo	Ngesikhashana ukusebenza	Iqhephukile amalunga e-solder
Okungalungile i-soldering	Amandla kagesi ukungazinzi	Reverse ukuvuza nokusebenza okungazinzile

Ukucindezeleka okushisayo okweqile kanye nokucindezela kukagesi kusala kuyizimbangela ezimbili ezivame kakhulu zokuhluleka kwe-SMD diode kuma-electronics wesimanje.Izinkinga eziningi zokwethembeka zisuka ekwakhiweni kokushisa kwe-PCB okunganele, ukukhetha okungalungile kwe-diode, ukuvikeleka okwanele kokuhlinza, ikhwalithi ehlangene ye-solder engalungile, kanye nemajini ye-voltage yokusebenza engalungile.

Ukucindezela kukagesi kwenzeka lapho i-diode isebenza ngaphezu kwe-voltage yayo noma isilinganiso samanje.Lokhu kungase kwenyuse ngokushesha izinga lokushisa lokuhlangana futhi kulimaze unomphela isakhiwo se-semiconductor.

Ukucindezeleka okushisayo okwedlulele kungenye imbangela enkulu yokwehluleka ku-compact electronics lapho indawo yethusi ye-PCB enganele ikhawulela ukuchithwa kokushisa.

Ukulimala kwe-ESD kuvame ukuthikameza ama-TVS diode afakwe kumachweba we-USB, ukuxhumana kwe-HDMI, izinhlelo zokuxhumana zezimoto, namasekhethi okuvikela e-Ethernet.Ukuchayeka okuphindaphindayo kwehlisa kancane kancane amandla okuvikela e-diode ngokuhamba kwesikhathi.

Amaphutha Okuklama Okujwayelekile kwe-PCB nge-SMD Diode

• Amaphedi Ashisayo Angaphansi

Ukuchithwa kwethusi okungalungile kwandisa izinga lokushisa le-junction futhi kunciphisa ukuthembeka kwesikhathi eside.Amaphedi amancane ashisayo angase avimbele ukushisa ekusabalaleni kahle kuyo yonke i-PCB.

• Ukubekwa kwe-TVS okungalungile

Ama-TVS diode abekwe kude kakhulu nezixhumi zangaphandle angasebenzi kahle uma kuqhathaniswa nemicimbi ye-ESD kanye nokunyuka kwamandla kagesi esikhashana.Ezinhlelweni zokuxhumana ezinesivinini esiphezulu njenge-USB, i-HDMI, namanethiwekhi edatha yezimoto, ukubekwa okungafanele kwe-TVS diode kungase kuvumele ama-voltage esikhashana ukuthi afinyelele kuma-IC azwelayo ngaphambi kokucindezelwa, okwandisa ingcuphe yokulimala kwesekethe unomphela.

• Ukusebenzisa Izilungisi Ezinensayo Kuyiyingi Yesivinini Esikhulu

Izikhathi zokululama ezihamba kancane zingase zethule umsindo oshintshayo, ukulahleka kwamandla okwenyuka, ukusebenza kahle okuncishisiwe, nezinkinga ze-EMI.Ukululama okusheshayo noma ama-Schottky diode ngokuvamile akhethwa ezinhlelweni zokushintsha imvamisa ephezulu.

• IMargin ye-Reverse Voltage engalungile

Ukukhetha ama-diode asondele kakhulu ku-voltage yokusebenza kwandisa ubungozi bokuphuka phakathi nokukhuphuka kwesikhashana noma izimo zokusebenza ezingazinzile.Ukuthembeka kwe-diode kuvame ukuthuthukiswa ngokuhlanganisa ukuphathwa kokushisa okufanele, imajini kagesi eyanele, ukwakheka kwe-PCB okulungiselelwe, ukubekwa kwe-diode okulungile eduze kwezindawo ezisengozini, kanye nezinqubo ezithembekile zokunamathisela.

Amazinga Okwethenjelwa kanye Nezitifiketi Zokuthobelana

Izindinganiso zokuthembeka zisiza ukuqinisekisa ukuthi ama-SMD diode angasebenza ngokuphephile ngaphansi kwezimo ezidingekayo zikagesi, ezishisayo, nezemvelo.

Isici	I-SMD Ama-Diodes	Nge-Hole Ama-Diodes
Usayizi we-PCB	Ihlangene	Okukhudlwana
Ukukhiqiza	I-SMT ezenzakalelayo	I-Manuwali/i-wave solder
Ukusebenza kwe-High-Frequency	Okungcono	Phansi
Ukulungiseka	Kunzima kakhulu	Kalula
Ukushisa Okushisayo	Kuphakathi	Kungcono ngamandla aphezulu
Ukusetshenziswa Okuvamile	Iyaphatheka electronics	Izinhlelo zezimboni

Ukuhlolwa kokuthobelana kusiza ukusekela ukwethembeka kwesikhathi eside, ukungaguquguquki kokukhiqiza, ukuphepha komkhiqizo, ukuqina okushisayo, nokuthobela imvelo.

I-SMD Diodes vs Through-Hole Diodes

Umfanekiso 12. SMD vs Through-Hole Components ku-PCB

Ama-diode e-SMD kanye nama-diode embobo womabili enza imisebenzi efanayo kagesi, kodwa ahluka kakhulu ngosayizi, indlela yokukhiqiza, ukuziphatha okushisayo, ukuqina kwemishini, nokuhlanganiswa kwe-PCB.

Isici	I-SMD Ama-Diodes	Nge-Hole Ama-Diodes
Usayizi we-PCB	Ihlangene	Okukhudlwana
Ukukhiqiza	I-SMT ezenzakalelayo	I-Manuwali/i-wave solder
Ukusebenza kwe-High-Frequency	Okungcono	Phansi
Ukulungiseka	Kunzima kakhulu	Kalula
Ukushisa Okushisayo	Kuphakathi	Kungcono ngamandla aphezulu
Ukusetshenziswa Okuvamile	Iyaphatheka electronics	Izinhlelo zezimboni

Ama-diode e-SMD ngokuvamile akhethwa kuma-electronics wesimanje ngoba asekela izakhiwo ezincane ze-PCB, ukukhiqizwa kwenqwaba okuzenzakalelayo, amadivaysi kagesi angasindi, kanye nokusebenza okuthuthukisiwe kwe-high-frequency.

Izindlela zabo zikagesi ezimfishane zisiza ekunciphiseni i-parasitic inductance namandla, okuzenza zifanelekele amasekhethi ashintshashintshayo anesivinini esikhulu, izinhlelo zokuxhumana ze-RF, iziguquli zamandla ahlangene, kanye nemishini kagesi egcwele phama.

Kodwa-ke, ama-Diode asebenzisa imbobo, asengakhethwa ezinhlelweni zamandla aphezulu, izinhlelo zokusebenza ezisindayo, izindawo zemishini ezinokhahlo, nezinto zokusebenza ezidinga ukulungiswa kalula noma ukushintshwa.

Ngenxa yokuthi izingxenye zembobo zisebenzisa izintambo zezintambo ezifakwe ku-PCB, ngokuvamile zihlinzeka ngokubambelela okuqinile komshini kanye nokubamba ukushisa okungcono kwamadivayisi amakhulu.

Emishinini yesimanje kagesi, ama-SMD diode abusa ngenxa yokuthi izakhiwo ezihlangene ze-PCB kanye nomhlangano ozenzakalelayo we-SMT kunciphisa kakhulu izindleko zokukhiqiza futhi kwenyuse isivinini sokukhiqiza.

Ungayikhetha kanjani i-Diode ye-SMD Elungile

Ukukhetha i-SMD diode efanele kudinga ukulinganisa ukusebenza kukagesi, amandla okushisa, ukwethembeka, isivinini sokushintsha, usayizi wephakheji, nezidingo zohlelo lokusebenza.

Ukusebenzisa i-diode engalungile kungase kuholele ekushiseni ngokweqile, ekungazinzini kwe-voltage, ukusebenza kahle okuncishisiwe, ukulahlekelwa amandla amaningi, kanye nokwehluleka kwengxenye ngaphambi kwesikhathi.

Ukukhetha okufanele kwe-diode kusiza ukusekela ukuthembeka kwesikhathi eside, ukuzinza kwe-thermal, kanye nokusebenza kohlelo lwe-elekthronikhi jikelele.

Umhlahlandlela Wokukhetha Okususelwe kuhlelo lokusebenza

Isicelo	I-Diode enconyiwe
Ishaja esheshayo	Schottky i-diode
Amandla kagesi umthethonqubo	I-Zener diode
I-USB ESD isivikelo	I-TVS diode
Ukushuna kwe-RF	I-Varactor i-diode
AC ukulungiswa	Isilungisi i-diode

Izici Eziyinhloko Okufanele Zicatshangelwe Ngesikhathi Sokukhetha

• Isilinganiso seVoltage ehlehlayo: I-diode kufanele imelane ngokuphephile ne-voltage ehlehlayo ephezulu ekhona kusekethe.Imajini kagesi enganele yandisa ingozi yokuphuka ngesikhathi sokukhuphuka kwamandla kagesi.

• Ikhono Lokuphatha Lamanje: I-diode kufanele isekele ngokuphephile kokubili izimo zamanje eziqhubekayo kanye nezimo zamanje zokuhlinzwa.Izinhlelo zokusebenza eziphakeme zamanje zivame ukudinga amaphakheji amakhulu, ukuchithwa okungcono kokushisa, nokulandela okubanzi kwe-PCB.

• Ukushintsha Isivinini: Amasekhethi anemvamisa ephezulu adinga ukululama ngokushesha noma ama-Schottky diode ukuze kuncishiswe ukulahlekelwa kokushintsha nokuthuthukisa ukusebenza kahle.

• Ukusebenza Okushisayo: Amandla okushisa abalulekile ngoba izinga lokushisa elidlulele lendawo ehlanganayo lingase lifinyeze ubude besikhathi sokuphila kwengxenye futhi kunciphise ukwethembeka.

• I-PCB Space Constraints: Imishini kagesi ehlangene ivamise ukudinga amaphakheji amancane we-SMD ukuze asekele izakhiwo ze-PCB eziminyana kakhulu.

Kodwa-ke, amaphakheji amancane angase abe namandla aphansi okushisa kanye nokuphatha amanje.

Ukukhetha ama-Diodes Wezimboni Ezihlukene

• I-Automotive Electronics: Ukuthembeka okuphezulu kokuphakama, ukubekezelela izinga lokushisa elibanzi, nokuthobela i-AEC-Q101 kubalulekile ukuze kugcinwe ukusebenza okuzinzile ngaphansi kwezimo ezinzima zikagesi nezemvelo.

• Amadivayisi E-elekthronikhi: Usayizi obambene, ukulahleka kwamandla aphansi, nokusebenza kahle okuphezulu kokukhiqiza kuvame ukubekwa kuqala kumadizayini aminyene e-PCB namasistimu aphathekayo.

• I-Industrial Systems: Ukuqina kwe-thermal, amandla amanje aphezulu, nokuthembeka kwesikhathi eside kubalulekile ekusebenzeni okuqhubekayo ezindaweni ezidinga ugesi.

• I-RF kanye Nezinhlelo Zokuxhumana: Ukushintsha ngokushesha, amandla okuhlanganisa aphansi, nokusebenza okuzinzile kwemvamisa ephezulu kusiza ukugcina ubuqotho besignali nokuziphatha okuphumelelayo kokuxhumana.

Ukukhetha iphakethe le-diode elilungile kanye nokucaciswa kukagesi kuthuthukisa kakhulu ukusebenza kahle kwamandla, ukuvikelwa kwesekethe, nokuthembeka kwesikhathi eside ezinhlelweni zesimanje zikagesi.

Isiphetho

Ama-diode e-SMD asetshenziswa kakhulu kuma-electronics wesimanje ukusekela ukulawulwa kwamandla okusebenzayo, ukuvikelwa kwesekethe, nokusebenza okuzinzile kwesivinini esikhulu.Ukukhetha okufanele kwe-diode kuncike ezicini ezifana ne-voltage eya phambili, isikhathi sokuthola kabusha, ukusebenza okushisayo, nekhono lamanje lokubamba.Idizayini enhle ye-PCB eshisayo nokukhetha okulungile kwephakheji kusiza ukunciphisa ukushisa nokuthuthukisa ukwethembeka kwesikhathi eside.Njengoba amadivaysi e-elekthronikhi eqhubeka eba mancane futhi abe namandla ngokwengeziwe, ukuqonda ukuziphatha kwe-SMD diode kuba kubaluleke kakhulu ekwakhiweni kwesekethe yesimanje.
